The most notable features of Inconel 718 are its exceptional high-temperature strength, superior corrosion resistance, and excellent weldability.

1. Key advantages of Inconel 718 valves manufactured by Freeman Valve:

1.1 Outstanding comprehensive mechanical properties of Inconel 718 valves manufactured by Freeman Valve:

After solution treatment and aging heat treatment, Inconel 718 valves exhibit outstanding comprehensive mechanical properties (-253℃～650℃), possessing excellent yield strength, creep resistance, endurance, and excellent resistance to thermomechanical fatigue and low-cycle fatigue.

1.2 Excellent cryogenic toughness of Inconel 718 valves manufactured by Freeman Valve:

Inconel 718 valves do not exhibit brittleness at 253℃ (liquid hydrogen temperature range), retaining good plasticity.

1.3 Freeman Valve's Inconel 718 valves possess excellent corrosion resistance and oxidation resistance:

Inconel 718 valves are resistant to corrosion from seawater, chloride ions, H₂S, CO₂, and acidic oil and gas media; furthermore, Inconel 718 resists stress corrosion cracking; and its oxidation resistance remains stable at medium temperatures.

1.4 Freeman Valve's Inconel 718 valves exhibit excellent weldability.

2. Precautions for using Inconel 718 valves:

2.1 Long-term use at temperatures above 700℃ is not recommended:

The strength and creep performance of Inconel 718 valves rapidly decline at temperatures above 700℃. Therefore, we recommend keeping the long-term stable operating temperature below 650℃.

2.2 Limited Resistance to Strong Oxidation and High-Temperature Sulfidation:

Inconel 718 valves exhibit less resistance to sulfidation corrosion than some high-cobalt-nickel-based alloys in sulfur-containing gas environments above 700℃.

3. Key Application Areas of Inconel 718 Valves:

3.1 Freeman Valve's Inconel 718 valves are widely used in cryogenic pipelines, such as those for liquid oxygen and liquid hydrogen media.

3.2 Freeman Valve's Inconel 718 valves are widely used in the power generation sector, such as steam generator pipelines, high-temperature and high-pressure water corrosion resistant pipelines, and pressurized water reactor nuclear power plants (nuclear radiation irradiation).

3.3 Freeman Valve's Inconel 718 valves are widely used in the oil and deep-sea oil and gas sector (NACE MR0175 operating condition), such as downhole safety valves and subsea valves; suitable for high-temperature and high-pressure corrosive environments where H₂S, CO₂, and chloride ions coexist.

3.4 Freeman Valve's Inconel 718 valves are widely used in the petrochemical industry, such as in high-temperature and high-pressure reactors, hydrogenation units, and special high-temperature valves.

4. Selection Tips:

4.1 Recommended choice: Inconel 718 valves are suitable for heavy-duty components requiring welding and operating between -253°C and 650°C, while also considering strength and corrosion resistance.

4.2 Not recommended choice: Inconel 718 valves are not suitable for applications with continuous operating temperatures above 650°C, or for applications requiring only strong corrosion and low strength. Inconel 625 valves may be considered instead.

Inconel 718 Valve, EN  2.4668 Valve

Type of INCONEL 718 Valve:

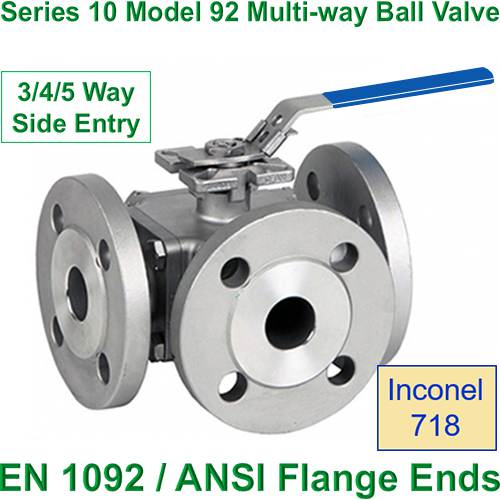

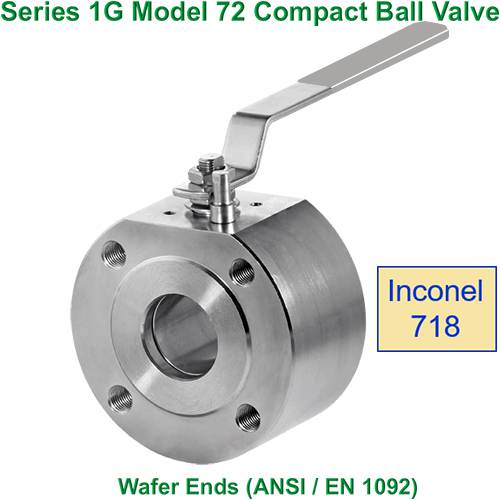

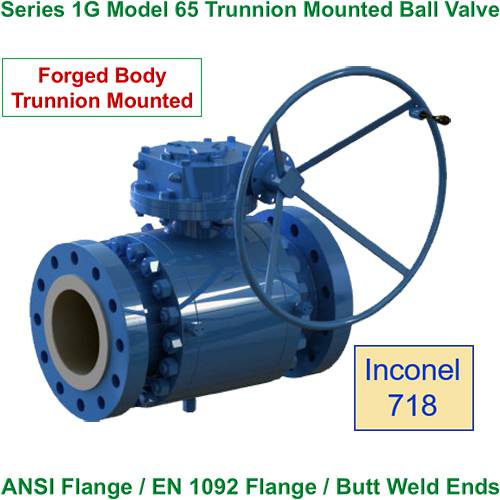

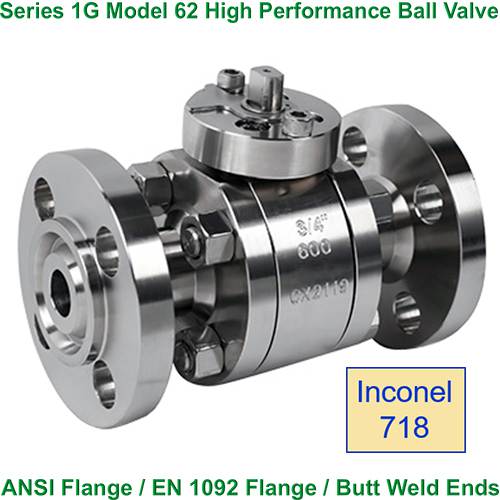

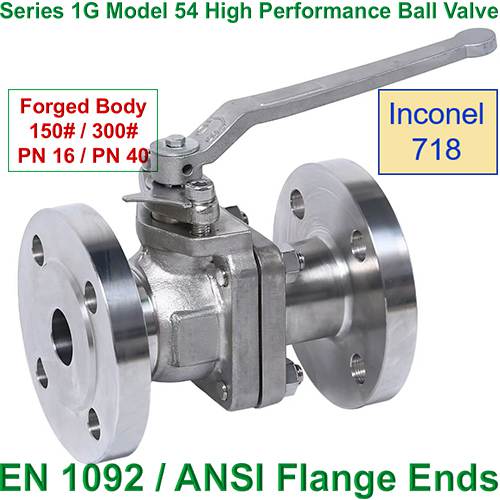

INCONEL 718 Ball Valve;

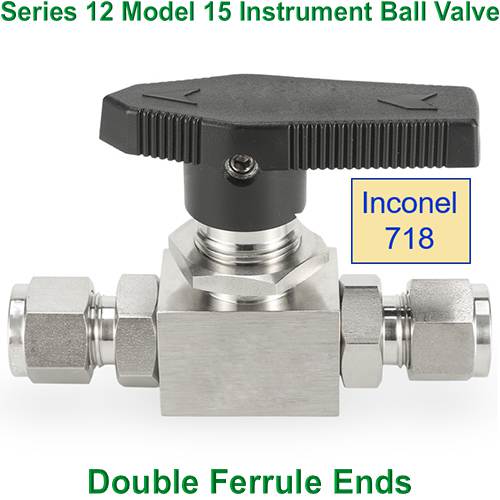

INCONEL 718 Instrument Ball Valve;

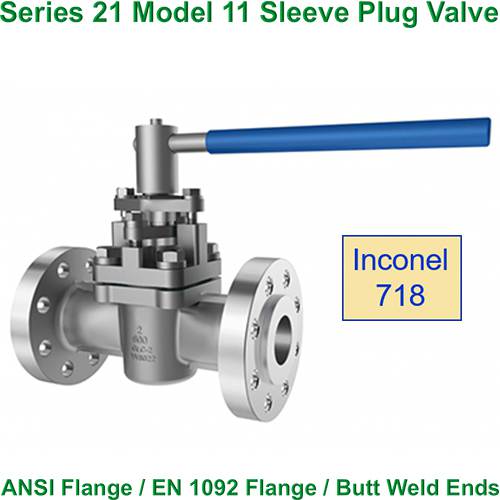

INCONEL 718 Sleeve Plug Valve;

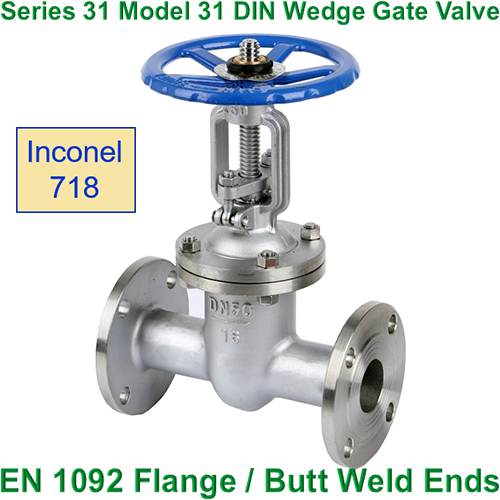

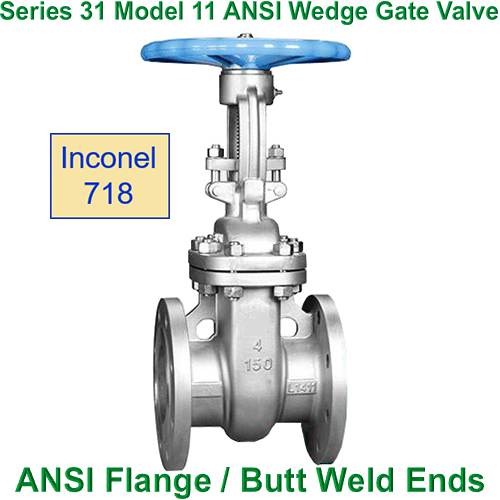

INCONEL 718 Wedge Gate Valve;

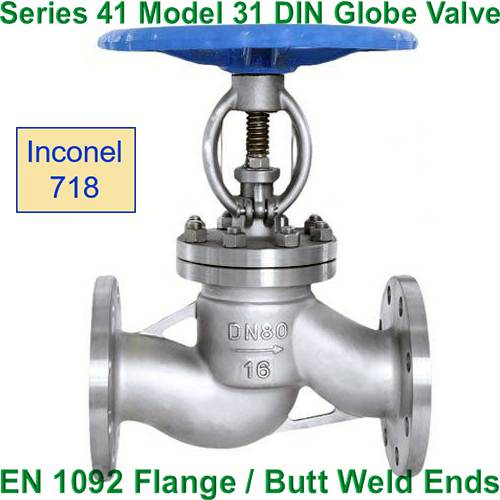

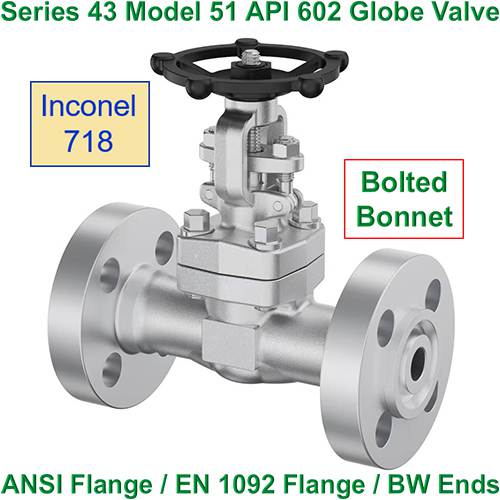

INCONEL 718 Globe Valve;

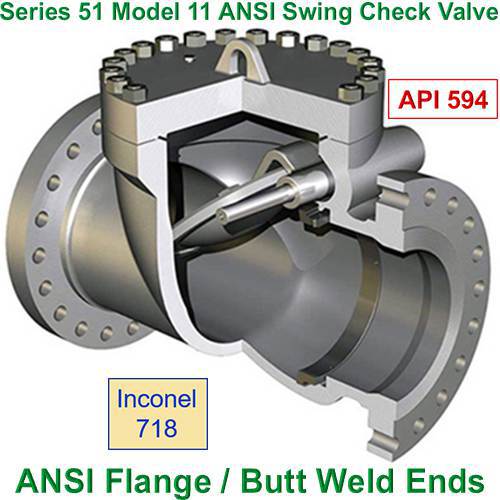

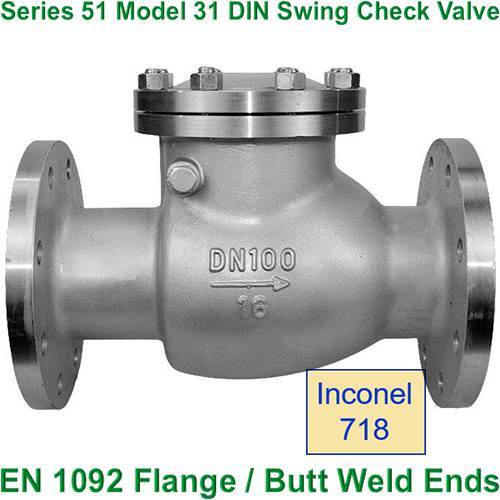

INCONEL 718 Swing Check Valve;

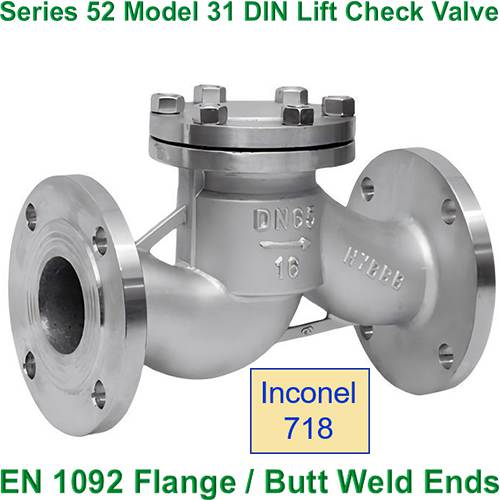

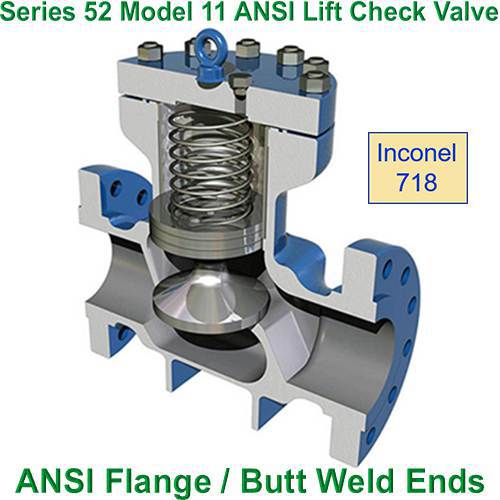

INCONEL 718 Lift Check Valve;

INCONEL 718 Piston Check Valve;

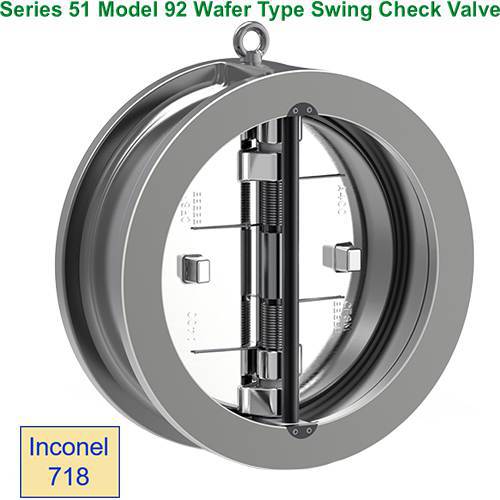

INCONEL 718 Wafer Check Valve;

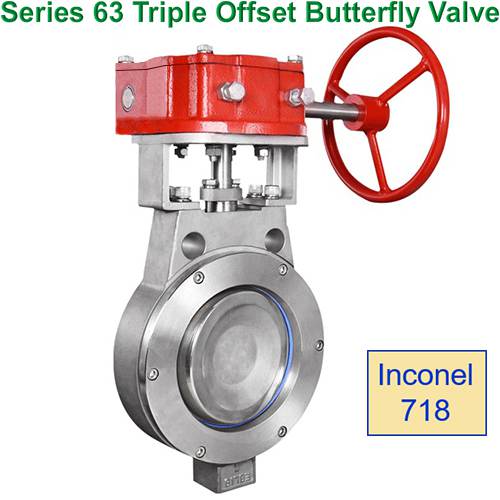

INCONEL 718 Triple Offset Butterfly Valve;

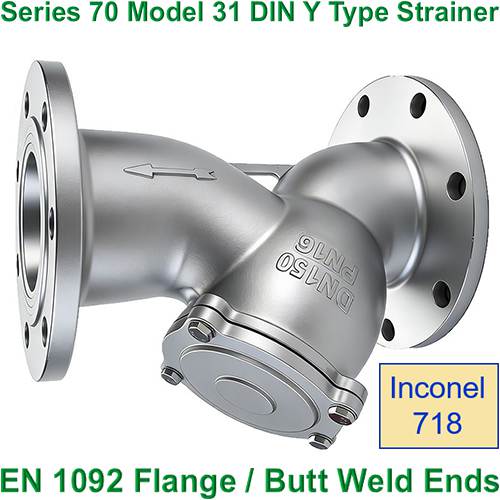

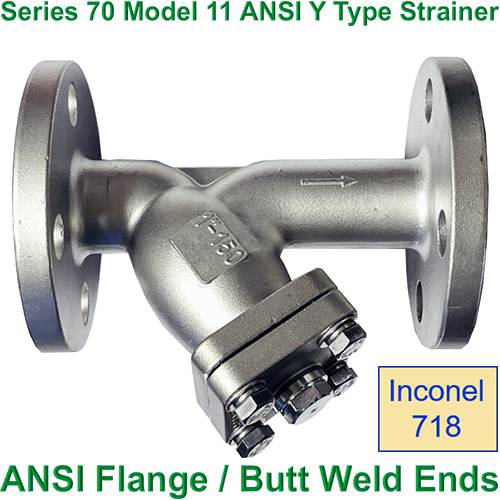

INCONEL 718 Y Type Strainer;

INCONEL 718 T Type Strainer;

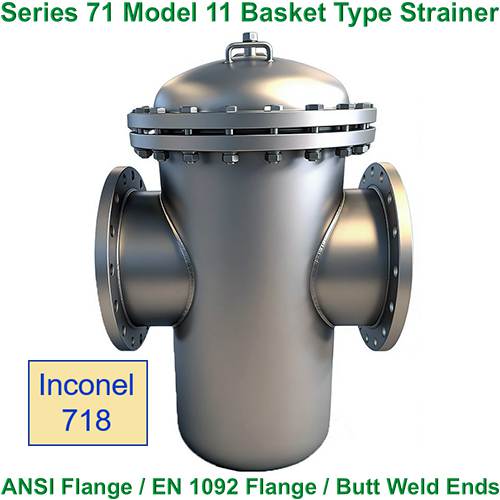

INCONEL 718 Basket Type Strainer;

INCONEL 718 Diaphragm Valve;

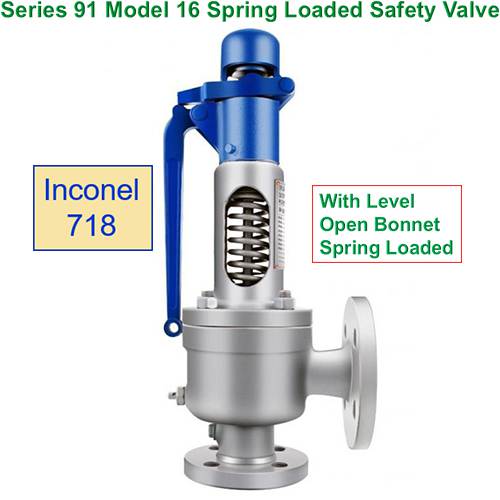

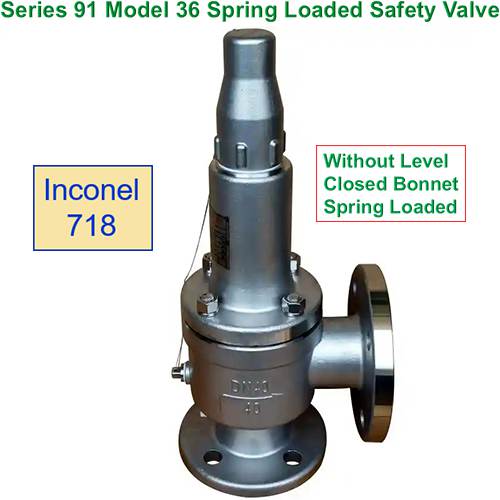

INCONEL 718 Spring Loaded Safety Valve.

Design and Test Standard of INCONEL 718 Valve:

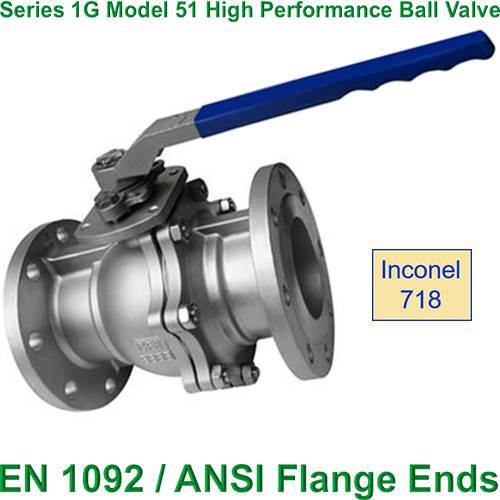

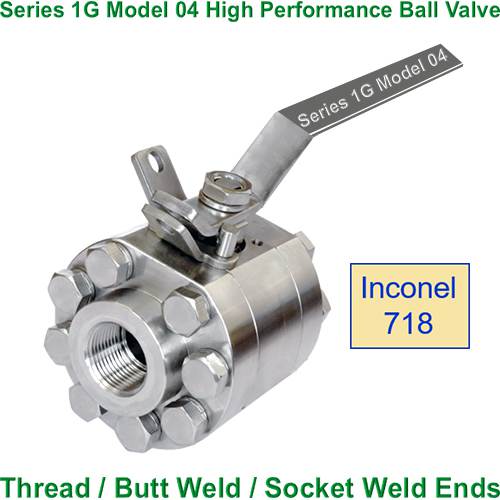

INCONEL 718 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 718 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 718 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

INCONEL 718 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

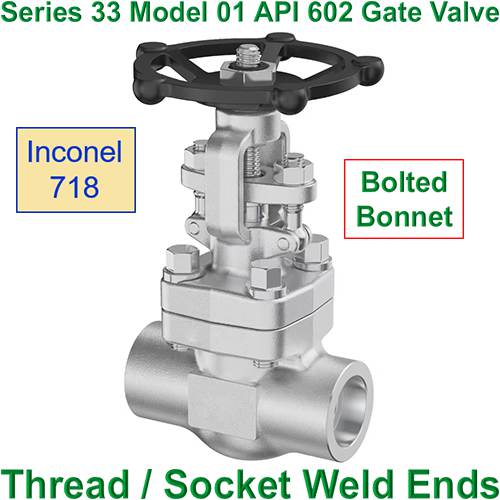

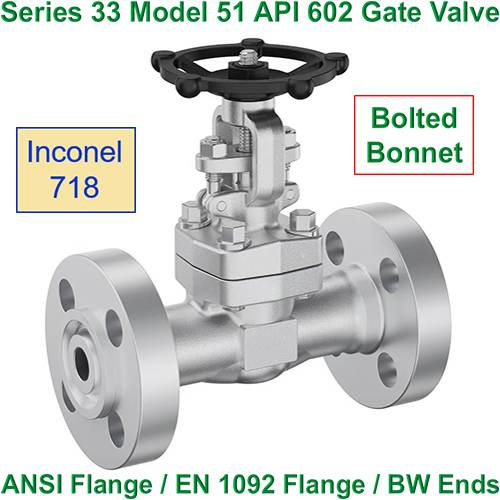

INCONEL 718 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

INCONEL 718 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

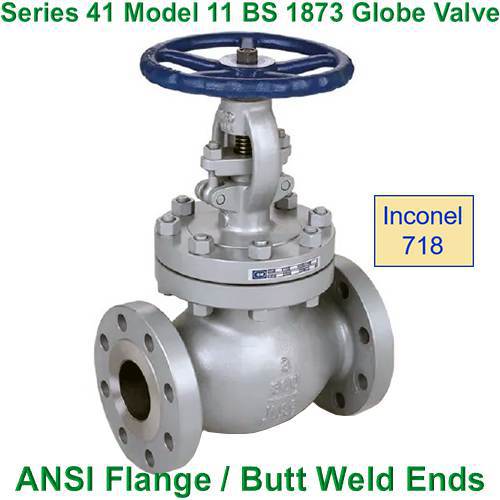

INCONEL 718 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

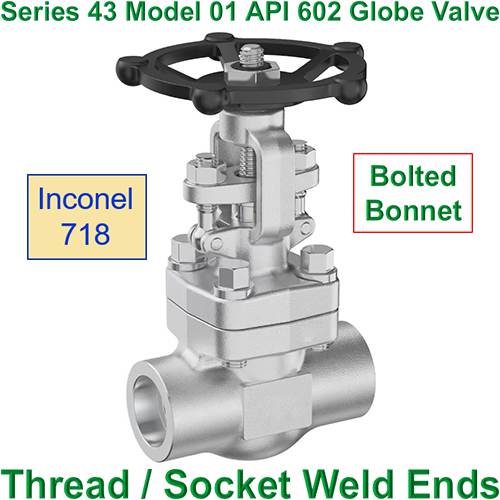

INCONEL 718 Globe Valve Design Acc. to API 602, Test Acc. to API 598;

INCONEL 718 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

INCONEL 718 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

INCONEL 718 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

INCONEL 718 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

INCONEL 718 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

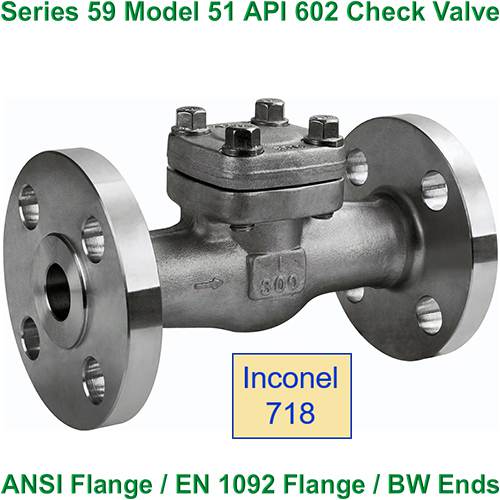

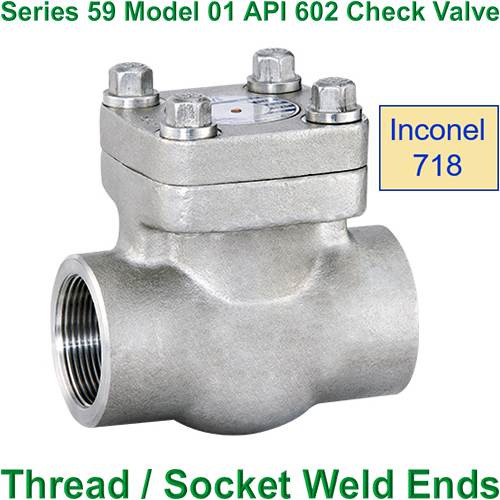

INCONEL 718 Check Valve Design Acc. to API 602, Test Acc. to API 598;

INCONEL 718 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

INCONEL 718 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 718 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 718 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 718 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 718 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 718 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

INCONEL 718 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.

Surface Finishing of INCONEL 718 Valve:

All INCONEL 718 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.

Size of INCONEL 718 Valve:

From 1/4’’ to 48’’ (ANSI Standard INCONEL 718 Valve);

From DN8 to DN1200 (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve).

Face to Face of INCONEL 718 Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard INCONEL 718 Valve);

Face to Face Acc. to EN 558-1 (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve).

Pressure Rating of INCONEL 718 Valve:

ANSI Class 150 INCONEL 718 Valve (ANSI Standard INCONEL 718 Valve);

ANSI Class 300 INCONEL 718 Valve (ANSI Standard INCONEL 718 Valve);

ANSI Class 600 INCONEL 718 Valve (ANSI Standard INCONEL 718 Valve);

ANSI Class 800 INCONEL 718 Valve (ANSI Standard INCONEL 718 Valve);

ANSI Class 900 INCONEL 718 Valve (ANSI Standard INCONEL 718 Valve);

ANSI Class 1500 INCONEL 718 Valve (ANSI Standard INCONEL 718 Valve);

ANSI Class 2500 INCONEL 718 Valve (ANSI Standard INCONEL 718 Valve);

EN 1092 PN 16 INCONEL 718 Valve (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve);

EN 1092 PN 25 INCONEL 718 Valve (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve);

EN 1092 PN 40 INCONEL 718 Valve (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve);

EN 1092 PN 63 INCONEL 718 Valve (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve);

EN 1092 PN 100 INCONEL 718 Valve (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve);

EN 1092 PN 160 INCONEL 718 Valve (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve);

EN 1092 PN 250 INCONEL 718 Valve (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve);

EN 1092 PN 320 INCONEL 718 Valve (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve);

EN 1092 PN 400 INCONEL 718 Valve (EN Standard INCONEL 718 Valve, DIN Standard INCONEL 718 Valve).

Working Temperature of INCONEL 718 Valve:

Please refer to the "Temperature and Pressure Curve of INCONEL 718 Valve" for temperature and pressure changes.

Ends Connection of INCONEL 718 Valve:

ANSI Flange Ends INCONEL 718 Valve;

ANSI Integral Flange Ends INCONEL 718 Valve;

ANSI Welded Flange Ends INCONEL 718 Valve;

Butt Weld (ASME B16.25) Ends INCONEL 718 Valve;

Butt Weld x ANSI Flange Ends INCONEL 718 Valve;

EN 1092 Flange Ends INCONEL 718 Valve;

EN 1092 Integral Flange Ends INCONEL 718 Valve;

EN 1092 Welded Flange Ends INCONEL 718 Valve;

Butt Weld (EN 12627) Ends INCONEL 718 Valve;

Butt Weld (ISO 1127) Ends INCONEL 718 Valve;

Butt Weld x EN 1092 Flange Ends INCONEL 718 Valve;

Male NPT (ASME B1.20.1) Ends INCONEL 718 Valve;

Male BSPP (ISO 228-1) Ends INCONEL 718 Valve;

Male BSPT (ISO 7-1) Ends INCONEL 718 Valve;

Male NPT x Female NPT Ends INCONEL 718 Valve;

Male BSPP x Female BSPP Ends INCONEL 718 Valve;

Male BSPT x Female BSPT Ends INCONEL 718 Valve;

Male NPT x Long Butt Weld (+100 mm) Ends INCONEL 718 Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends INCONEL 718 Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends INCONEL 718 Valve;

Female NPT (ASME B1.20.1) Ends INCONEL 718 Valve;

Female BSPP (ISO 228-1) Ends INCONEL 718 Valve;

Female BSPT (ISO 7-1) Ends INCONEL 718 Valve;

Socket Weld (ASME B16.11) Ends INCONEL 718 Valve;

Socket Weld (EN 12760) Ends INCONEL 718 Valve;

Female NPT x Socket Weld Ends INCONEL 718 Valve;

Female BSPP x Socket Weld Ends INCONEL 718 Valve;

Female BSPT x Socket Weld Ends INCONEL 718 Valve;

Butt Weld (ASME B16.25) Ends INCONEL 718 Valve;

Butt Weld (EN 12627) Ends INCONEL 718 Valve;

Female NPT x Butt Weld Ends INCONEL 718 Valve;

Female BSPP x Butt Weld Ends INCONEL 718 Valve;

Female BSPT x Butt Weld Ends INCONEL 718 Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends INCONEL 718 Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends INCONEL 718 Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends INCONEL 718 Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends INCONEL 718 Valve.

CE Marking of INCONEL 718 Valve:

CE Marking is Available to INCONEL 718 Valve with a Diameter of DN32 or Larger.

Chemical Composition of INCONEL 718 Valve:

For the Chemical Composition of INCONEL 718 Valve, please refer to EN 10204 Type 3.1 certificate.

Mechanical Properties of INCONEL 718 Valve:

For the Mechanical Properties of INCONEL 718 Valve, please refer to EN 10204 Type 3.1 certificate.

Certificate of INCONEL 718 Valve:

All INCONEL 718 Valve will be delivered with EN 10204 Type 3.1 Certificate.

Operation of INCONEL 718 Valve:

Level Operation of INCONEL 718 Valve;

Handwheel Operation of INCONEL 718 Valve;

Pneumatic Actuator Operation of INCONEL 718 Valve;

Electric Actuator Operation of INCONEL 718 Valve.

Approvals of INCONEL 718 Valve:

MSS SP-55 Certified of INCONEL 718 Valve;

NACE MR 0175 Certified of INCONEL 718 Valve

API 607 Fire Safe Certified of INCONEL 718 Valve;

ISO 9001 Certified of INCONEL 718 Valve;

PED Certified of INCONEL 718 Valve.

Available Upon Request of INCONEL 718 Valve:

NACE MR0175 is available upon request of INCONEL 718 Valve;

ATEX is available upon request of INCONEL 718 Valve;

TA-LUFT is available upon request of INCONEL 718 Valve;

SIL is available upon request of INCONEL 718 Valve;

Degreasing is available upon request of INCONEL 718 Valve;

Fire Safe is available upon request of INCONEL 718 Valve;

Stem Extension is available upon request of INCONEL 718 Valve;

Double Block and Bleed is available upon request of INCONEL 718 Valve.

Type of EN 2.4668 Valve:

EN 2.4668 Ball Valve;

EN 2.4668 Instrument Ball Valve;

EN 2.4668 Sleeve Plug Valve;

EN 2.4668 Wedge Gate Valve;

EN 2.4668 Globe Valve;

EN 2.4668 Swing Check Valve;

EN 2.4668 Lift Check Valve;

EN 2.4668 Piston Check Valve;

EN 2.4668 Wafer Check Valve;

EN 2.4668 Triple Offset Butterfly Valve;

EN 2.4668 Y Type Strainer;

EN 2.4668 T Type Strainer;

EN 2.4668 Basket Type Strainer;

EN 2.4668 Diaphragm Valve;

EN 2.4668 Spring Loaded Safety Valve.

Design and Test Standard of EN 2.4668 Valve:

EN 2.4668 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4668 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4668 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

EN 2.4668 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

EN 2.4668 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

EN 2.4668 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

EN 2.4668 Globe Valve Design Acc. to API 602, Test Acc. to API 598;

EN 2.4668 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 2.4668 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 2.4668 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 2.4668 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 2.4668 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Check Valve Design Acc. to API 602, Test Acc. to API 598;

EN 2.4668 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

EN 2.4668 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4668 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4668 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4668 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4668 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4668 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

EN 2.4668 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.

Surface Finishing of EN 2.4668 Valve:

All EN 2.4668 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.

Size of EN 2.4668 Valve:

From 1/4’’ to 48’’ (ANSI Standard EN 2.4668 Valve);

From DN8 to DN1200 (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve).

Face to Face of EN 2.4668 Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard EN 2.4668 Valve);

Face to Face Acc. to EN 558-1 (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve).

Pressure Rating of EN 2.4668 Valve:

ANSI Class 150 EN 2.4668 Valve (ANSI Standard EN 2.4668 Valve);

ANSI Class 300 EN 2.4668 Valve (ANSI Standard EN 2.4668 Valve);

ANSI Class 600 EN 2.4668 Valve (ANSI Standard EN 2.4668 Valve);

ANSI Class 800 EN 2.4668 Valve (ANSI Standard EN 2.4668 Valve);

ANSI Class 900 EN 2.4668 Valve (ANSI Standard EN 2.4668 Valve);

ANSI Class 1500 EN 2.4668 Valve (ANSI Standard EN 2.4668 Valve);

ANSI Class 2500 EN 2.4668 Valve (ANSI Standard EN 2.4668 Valve);

EN 1092 PN 16 EN 2.4668 Valve (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve);

EN 1092 PN 25 EN 2.4668 Valve (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve);

EN 1092 PN 40 EN 2.4668 Valve (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve);

EN 1092 PN 63 EN 2.4668 Valve (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve);

EN 1092 PN 100 EN 2.4668 Valve (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve);

EN 1092 PN 160 EN 2.4668 Valve (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve);

EN 1092 PN 250 EN 2.4668 Valve (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve);

EN 1092 PN 320 EN 2.4668 Valve (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve);

EN 1092 PN 400 EN 2.4668 Valve (EN Standard EN 2.4668 Valve, DIN Standard EN 2.4668 Valve).

Working Temperature of EN 2.4668 Valve:

Please refer to the "Temperature and Pressure Curve of EN 2.4668 Valve" for temperature and pressure changes.

Ends Connection of EN 2.4668 Valve:

ANSI Flange Ends EN 2.4668 Valve;

ANSI Integral Flange Ends EN 2.4668 Valve;

ANSI Welded Flange Ends EN 2.4668 Valve;

Butt Weld (ASME B16.25) Ends EN 2.4668 Valve;

Butt Weld x ANSI Flange Ends EN 2.4668 Valve;

EN 1092 Flange Ends EN 2.4668 Valve;

EN 1092 Integral Flange Ends EN 2.4668 Valve;

EN 1092 Welded Flange Ends EN 2.4668 Valve;

Butt Weld (EN 12627) Ends EN 2.4668 Valve;

Butt Weld (ISO 1127) Ends EN 2.4668 Valve;

Butt Weld x EN 1092 Flange Ends EN 2.4668 Valve;

Male NPT (ASME B1.20.1) Ends EN 2.4668 Valve;

Male BSPP (ISO 228-1) Ends EN 2.4668 Valve;

Male BSPT (ISO 7-1) Ends EN 2.4668 Valve;

Male NPT x Female NPT Ends EN 2.4668 Valve;

Male BSPP x Female BSPP Ends EN 2.4668 Valve;

Male BSPT x Female BSPT Ends EN 2.4668 Valve;

Male NPT x Long Butt Weld (+100 mm) Ends EN 2.4668 Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends EN 2.4668 Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends EN 2.4668 Valve;

Female NPT (ASME B1.20.1) Ends EN 2.4668 Valve;

Female BSPP (ISO 228-1) Ends EN 2.4668 Valve;

Female BSPT (ISO 7-1) Ends EN 2.4668 Valve;

Socket Weld (ASME B16.11) Ends EN 2.4668 Valve;

Socket Weld (EN 12760) Ends EN 2.4668 Valve;

Female NPT x Socket Weld Ends EN 2.4668 Valve;

Female BSPP x Socket Weld Ends EN 2.4668 Valve;

Female BSPT x Socket Weld Ends EN 2.4668 Valve;

Butt Weld (ASME B16.25) Ends EN 2.4668 Valve;

Butt Weld (EN 12627) Ends EN 2.4668 Valve;

Female NPT x Butt Weld Ends EN 2.4668 Valve;

Female BSPP x Butt Weld Ends EN 2.4668 Valve;

Female BSPT x Butt Weld Ends EN 2.4668 Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends EN 2.4668 Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends EN 2.4668 Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends EN 2.4668 Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends EN 2.4668 Valve.

CE Marking of EN 2.4668 Valve:

CE Marking is Available to EN 2.4668 Valve with a Diameter of DN32 or Larger.

Chemical Composition of EN 2.4668 Valve:

For the Chemical Composition of EN 2.4668 Valve, please refer to EN 10204 Type 3.1 certificate.

Mechanical Properties of EN 2.4668 Valve:

For the Mechanical Properties of EN 2.4668 Valve, please refer to EN 10204 Type 3.1 certificate.

Certificate of EN 2.4668 Valve:

All EN 2.4668 Valve will be delivered with EN 10204 Type 3.1 Certificate.

Operation of EN 2.4668 Valve:

Level Operation of EN 2.4668 Valve;

Handwheel Operation of EN 2.4668 Valve;

Pneumatic Actuator Operation of EN 2.4668 Valve;

Electric Actuator Operation of EN 2.4668 Valve.

Approvals of EN 2.4668 Valve:

MSS SP-55 Certified of EN 2.4668 Valve;

NACE MR 0175 Certified of EN 2.4668 Valve

API 607 Fire Safe Certified of EN 2.4668 Valve;

ISO 9001 Certified of EN 2.4668 Valve;

PED Certified of EN 2.4668 Valve.

Available Upon Request of EN 2.4668 Valve:

NACE MR0175 is available upon request of EN 2.4668 Valve;

ATEX is available upon request of EN 2.4668 Valve;

TA-LUFT is available upon request of EN 2.4668 Valve;

SIL is available upon request of EN 2.4668 Valve;

Degreasing is available upon request of EN 2.4668 Valve;

Fire Safe is available upon request of EN 2.4668 Valve;

Stem Extension is available upon request of EN 2.4668 Valve;

Double Block and Bleed is available upon request of EN 2.4668 Valve.
