Nickel Aluminum Bronze C95800 Valve

Nickel Aluminum Bronze Valve, C95800 Valve



1. Key features of the C95800 valves:



The C95800 valve is made of a high-strength nickel-aluminum bronze casting alloy. It is renowned for its excellent seawater corrosion resistance, high load capacity, and resistance to cavitation and wear.



2. Freeman Valve's C95800 valves offers the following significant advantages:



2.1 Excellent Seawater and Corrosion Resistance:

Freeman Valve's C95800 valves exhibits exceptional resistance to seawater and chlorinated fluids, making it particularly suitable for marine environments.



2.2 Resistance to High-Speed Fluids and Erosion:

Freeman Valve's C95800 valves is resistant to cavitation and erosion corrosion, making it suitable for high-velocity media.



2.3 High Strength and Wear Resistance:

Freeman Valve's C95800 valves boasts high tensile strength (up to 620 MPa and above) and a hardness exceeding HB 200, making it suitable for high-load, high-wear conditions. Furthermore, it exhibits excellent fatigue resistance, making it suitable for dynamically loaded components.



2.4 Biocompatibility and Resistance to Biofouling:

When used in marine components, Freeman Valve's C95800 valves resists marine organism adhesion, reducing maintenance requirements.


3. The following points should be noted when using C95800 valves:



3.1 C95800 valves are not suitable for operating conditions exceeding 260℃. This is because the strength and corrosion resistance of C95800 valves decrease significantly at high temperatures.



3.2 C95800 valves are not suitable for strong acids, oxidizing media, or ammonia-containing media (as they are prone to stress corrosion cracking).



3.3 C95800 valves are not suitable for polluted seawater. Localized corrosion may occur under low-velocity sediment conditions.



4. The acid corrosion resistance mechanism of C95800 valves:



The corrosion resistance of C95800 valves mainly relies on the dense oxide film (Al₂O₃ + Cu₂O) formed on its surface, which remains stable even in acidic environments.



5. Performance of Freeman Valve C95800 Valves in Acidic Environments:



5.1 C95800 Valves for Dilute Sulfuric Acid (H₂SO₄):

Good corrosion resistance (≤10% concentration, room temperature), superior to ordinary bronze; corrosion rate accelerates at high concentrations or high temperatures. However, factors such as temperature, concentration, and oxidizing properties (e.g., air circulation accelerates corrosion) need to be considered.



5.2 C95800 Valves for Hydrochloric Acid (HCl):

Moderate corrosion resistance (especially at >5% concentration or high temperatures); Cl⁻ will damage the passivation film, but better than 304 stainless steel. However, factors such as Cl⁻ concentration, pH value, and flow rate (erosion corrosion) need to be considered.



5.3 C95800 Valves for Phosphoric Acid (H₃PO₄):

Excellent performance, suitable for low to medium concentration phosphoric acid environments. However, factors such as impurities need to be considered (e.g., fluorides can exacerbate corrosion);



5.4 C95800 valves for nitric acid (HNO₃):

Not corrosion-resistant (strong oxidizing acids damage the Cu-Al film), only suitable for very low concentrations. Concentration needs to be monitored; rapid corrosion occurs when the concentration > 5%;



5.5 C95800 valves for organic acids (such as acetic acid):

Good corrosion resistance, suitable for food/chemical equipment. However, key influencing factors such as temperature and oxygen content need to be considered.



6 Summary:



The corrosion resistance of C95800 valves in acidic media stems from its Al-Ni synergistic passivation effect, making it particularly suitable for low-concentration non-oxidizing acids (such as H₂SO₄, H₃PO₄) and weakly acidic environments containing Cl⁻, but strong oxidizing acids must be avoided. In acidic conditions in chemical, marine, and other fields, its comprehensive performance (corrosion resistance + wear resistance + strength) makes it a cost-effective choice, but nickel-based alloys or titanium materials should be considered for extreme conditions.


Type of Nickel Aluminum Bronze Valve:

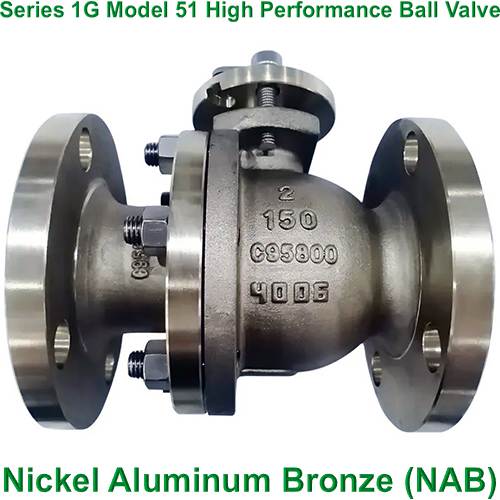

Nickel Aluminum Bronze Ball Valve;

Nickel Aluminum Bronze Instrument Ball Valve;

Nickel Aluminum Bronze Sleeve Plug Valve;

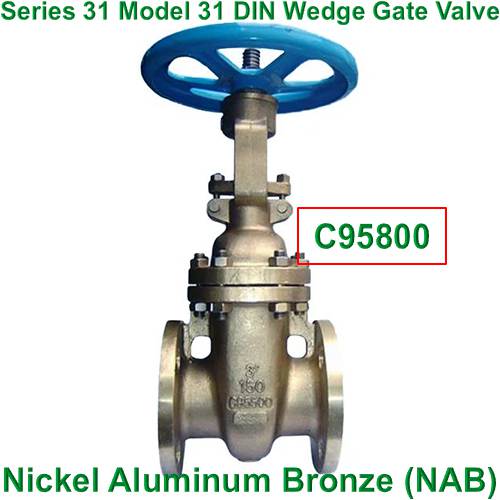

Nickel Aluminum Bronze Wedge Gate Valve;

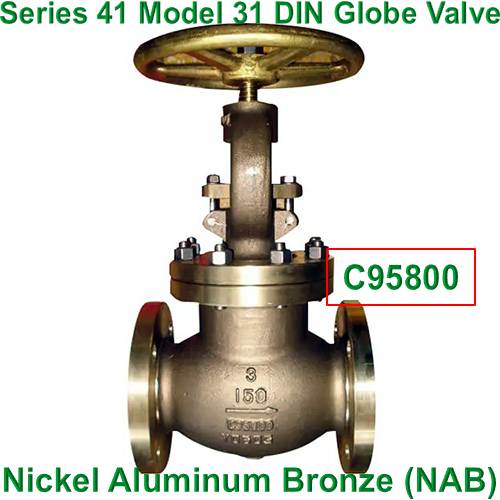

Nickel Aluminum Bronze Globe Valve;

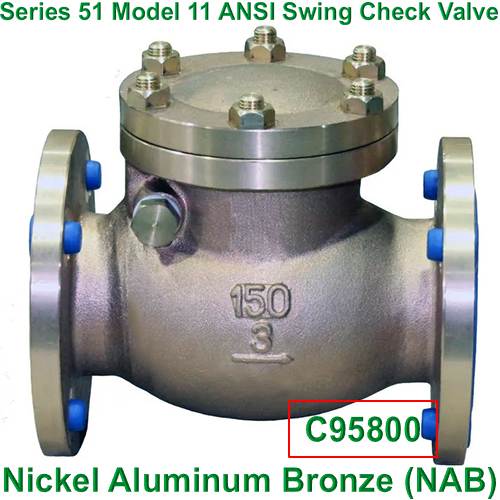

Nickel Aluminum Bronze Swing Check Valve;

Nickel Aluminum Bronze Lift Check Valve;

Nickel Aluminum Bronze Piston Check Valve;

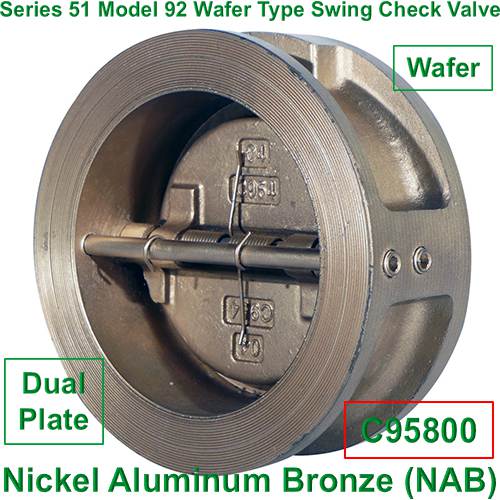

Nickel Aluminum Bronze Wafer Check Valve;

Nickel Aluminum Bronze Triple Offset Butterfly Valve;

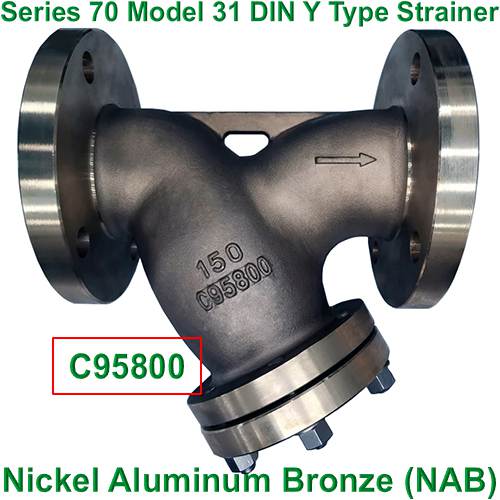

Nickel Aluminum Bronze Y Type Strainer;

Nickel Aluminum Bronze T Type Strainer;

Nickel Aluminum Bronze Basket Type Strainer;

Nickel Aluminum Bronze Diaphragm Valve;

Nickel Aluminum Bronze Spring Loaded Safety Valve.



Design and Test Standard of Nickel Aluminum Bronze Valve:

Nickel Aluminum Bronze High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

Nickel Aluminum Bronze Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Globe Valve Design Acc. to API 602, Test Acc. to API 598;

Nickel Aluminum Bronze Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Check Valve Design Acc. to API 602, Test Acc. to API 598;

Nickel Aluminum Bronze Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

Nickel Aluminum Bronze Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

Nickel Aluminum Bronze Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

Nickel Aluminum Bronze Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.



Surface Finishing of Nickel Aluminum Bronze Valve:

All Nickel Aluminum Bronze Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.



Size of Nickel Aluminum Bronze Valve:

From 1/4’’ to 48’’ (ANSI Standard Nickel Aluminum Bronze Valve);

From DN8 to DN1200 (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve).



Face to Face of Nickel Aluminum Bronze Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard Nickel Aluminum Bronze Valve);

Face to Face Acc. to EN 558-1 (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve).



Pressure Rating of Nickel Aluminum Bronze Valve:

ANSI Class 150 Nickel Aluminum Bronze Valve (ANSI Standard Nickel Aluminum Bronze Valve);

ANSI Class 300 Nickel Aluminum Bronze Valve (ANSI Standard Nickel Aluminum Bronze Valve);

ANSI Class 600 Nickel Aluminum Bronze Valve (ANSI Standard Nickel Aluminum Bronze Valve);

ANSI Class 800 Nickel Aluminum Bronze Valve (ANSI Standard Nickel Aluminum Bronze Valve);

ANSI Class 900 Nickel Aluminum Bronze Valve (ANSI Standard Nickel Aluminum Bronze Valve);

ANSI Class 1500 Nickel Aluminum Bronze Valve (ANSI Standard Nickel Aluminum Bronze Valve);

ANSI Class 2500 Nickel Aluminum Bronze Valve (ANSI Standard Nickel Aluminum Bronze Valve);

EN 1092 PN 16 Nickel Aluminum Bronze Valve (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve);

EN 1092 PN 25 Nickel Aluminum Bronze Valve (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve);

EN 1092 PN 40 Nickel Aluminum Bronze Valve (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve);

EN 1092 PN 63 Nickel Aluminum Bronze Valve (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve);

EN 1092 PN 100 Nickel Aluminum Bronze Valve (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve);

EN 1092 PN 160 Nickel Aluminum Bronze Valve (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve);

EN 1092 PN 250 Nickel Aluminum Bronze Valve (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve);

EN 1092 PN 320 Nickel Aluminum Bronze Valve (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve);

EN 1092 PN 400 Nickel Aluminum Bronze Valve (EN Standard Nickel Aluminum Bronze Valve, DIN Standard Nickel Aluminum Bronze Valve).



Working Temperature of Nickel Aluminum Bronze Valve:

Please refer to the "Temperature and Pressure Curve of Nickel Aluminum Bronze Valve" for temperature and pressure changes.



Ends Connection of Nickel Aluminum Bronze Valve:

ANSI Flange Ends Nickel Aluminum Bronze Valve;

ANSI Integral Flange Ends Nickel Aluminum Bronze Valve;

ANSI Welded Flange Ends Nickel Aluminum Bronze Valve;

Butt Weld (ASME B16.25) Ends Nickel Aluminum Bronze Valve;

Butt Weld x ANSI Flange Ends Nickel Aluminum Bronze Valve;

EN 1092 Flange Ends Nickel Aluminum Bronze Valve;

EN 1092 Integral Flange Ends Nickel Aluminum Bronze Valve;

EN 1092 Welded Flange Ends Nickel Aluminum Bronze Valve;

Butt Weld (EN 12627) Ends Nickel Aluminum Bronze Valve;

Butt Weld (ISO 1127) Ends Nickel Aluminum Bronze Valve;

Butt Weld x EN 1092 Flange Ends Nickel Aluminum Bronze Valve;

Male NPT (ASME B1.20.1) Ends Nickel Aluminum Bronze Valve;

Male BSPP (ISO 228-1) Ends Nickel Aluminum Bronze Valve;

Male BSPT (ISO 7-1) Ends Nickel Aluminum Bronze Valve;

Male NPT x Female NPT Ends Nickel Aluminum Bronze Valve;

Male BSPP x Female BSPP Ends Nickel Aluminum Bronze Valve;

Male BSPT x Female BSPT Ends Nickel Aluminum Bronze Valve;

Male NPT x Long Butt Weld (+100 mm) Ends Nickel Aluminum Bronze Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends Nickel Aluminum Bronze Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends Nickel Aluminum Bronze Valve;

Female NPT (ASME B1.20.1) Ends Nickel Aluminum Bronze Valve;

Female BSPP (ISO 228-1) Ends Nickel Aluminum Bronze Valve;

Female BSPT (ISO 7-1) Ends Nickel Aluminum Bronze Valve;

Socket Weld (ASME B16.11) Ends Nickel Aluminum Bronze Valve;

Socket Weld (EN 12760) Ends Nickel Aluminum Bronze Valve;

Female NPT x Socket Weld Ends Nickel Aluminum Bronze Valve;

Female BSPP x Socket Weld Ends Nickel Aluminum Bronze Valve;

Female BSPT x Socket Weld Ends Nickel Aluminum Bronze Valve;

Butt Weld (ASME B16.25) Ends Nickel Aluminum Bronze Valve;

Butt Weld (EN 12627) Ends Nickel Aluminum Bronze Valve;

Female NPT x Butt Weld Ends Nickel Aluminum Bronze Valve;

Female BSPP x Butt Weld Ends Nickel Aluminum Bronze Valve;

Female BSPT x Butt Weld Ends Nickel Aluminum Bronze Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends Nickel Aluminum Bronze Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends Nickel Aluminum Bronze Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends Nickel Aluminum Bronze Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends Nickel Aluminum Bronze Valve.



CE Marking of Nickel Aluminum Bronze Valve:

CE Marking is Available to Nickel Aluminum Bronze Valve with a Diameter of DN32 or Larger.



Chemical Composition of Nickel Aluminum Bronze Valve:

For the Chemical Composition of Nickel Aluminum Bronze Valve, please refer to EN 10204 Type 3.1 certificate.



Mechanical Properties of Nickel Aluminum Bronze Valve:

For the Mechanical Properties of Nickel Aluminum Bronze Valve, please refer to EN 10204 Type 3.1 certificate.



Certificate of Nickel Aluminum Bronze Valve:

All Nickel Aluminum Bronze Valve will be delivered with EN 10204 Type 3.1 Certificate.



Operation of Nickel Aluminum Bronze Valve:

Level Operation of Nickel Aluminum Bronze Valve;

Handwheel Operation of Nickel Aluminum Bronze Valve;

Pneumatic Actuator Operation of Nickel Aluminum Bronze Valve;

Electric Actuator Operation of Nickel Aluminum Bronze Valve.



Approvals of Nickel Aluminum Bronze Valve:

MSS SP-55 Certified of Nickel Aluminum Bronze Valve;

NACE MR 0175 Certified of Nickel Aluminum Bronze Valve

API 607 Fire Safe Certified of Nickel Aluminum Bronze Valve;

ISO 9001 Certified of Nickel Aluminum Bronze Valve;

PED Certified of Nickel Aluminum Bronze Valve.



Available Upon Request of Nickel Aluminum Bronze Valve:

NACE MR0175 is available upon request of Nickel Aluminum Bronze Valve;

ATEX is available upon request of Nickel Aluminum Bronze Valve;

TA-LUFT is available upon request of Nickel Aluminum Bronze Valve;

SIL is available upon request of Nickel Aluminum Bronze Valve;

Degreasing is available upon request of Nickel Aluminum Bronze Valve;

Fire Safe is available upon request of Nickel Aluminum Bronze Valve;

Stem Extension is available upon request of Nickel Aluminum Bronze Valve;

Double Block and Bleed is available upon request of Nickel Aluminum Bronze Valve.



Type of C95800 Valve:

C95800 Ball Valve;

C95800 Instrument Ball Valve;

C95800 Sleeve Plug Valve;

C95800 Wedge Gate Valve;

C95800 Globe Valve;

C95800 Swing Check Valve;

C95800 Lift Check Valve;

C95800 Piston Check Valve;

C95800 Wafer Check Valve;

C95800 Triple Offset Butterfly Valve;

C95800 Y Type Strainer;

C95800 T Type Strainer;

C95800 Basket Type Strainer;

C95800 Diaphragm Valve;

C95800 Spring Loaded Safety Valve.



Design and Test Standard of C95800 Valve:

C95800 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

C95800 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

C95800 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

C95800 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

C95800 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

C95800 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

C95800 Globe Valve Design Acc. to API 602, Test Acc. to API 598;

C95800 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C95800 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C95800 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C95800 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C95800 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Check Valve Design Acc. to API 602, Test Acc. to API 598;

C95800 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

C95800 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

C95800 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

C95800 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

C95800 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

C95800 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95800 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

C95800 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.



Surface Finishing of C95800 Valve:

All C95800 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.



Size of C95800 Valve:

From 1/4’’ to 48’’ (ANSI Standard C95800 Valve);

From DN8 to DN1200 (EN Standard C95800 Valve, DIN Standard C95800 Valve).



Face to Face of C95800 Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard C95800 Valve);

Face to Face Acc. to EN 558-1 (EN Standard C95800 Valve, DIN Standard C95800 Valve).



Pressure Rating of C95800 Valve:

ANSI Class 150 C95800 Valve (ANSI Standard C95800 Valve);

ANSI Class 300 C95800 Valve (ANSI Standard C95800 Valve);

ANSI Class 600 C95800 Valve (ANSI Standard C95800 Valve);

ANSI Class 800 C95800 Valve (ANSI Standard C95800 Valve);

ANSI Class 900 C95800 Valve (ANSI Standard C95800 Valve);

ANSI Class 1500 C95800 Valve (ANSI Standard C95800 Valve);

ANSI Class 2500 C95800 Valve (ANSI Standard C95800 Valve);

EN 1092 PN 16 C95800 Valve (EN Standard C95800 Valve, DIN Standard C95800 Valve);

EN 1092 PN 25 C95800 Valve (EN Standard C95800 Valve, DIN Standard C95800 Valve);

EN 1092 PN 40 C95800 Valve (EN Standard C95800 Valve, DIN Standard C95800 Valve);

EN 1092 PN 63 C95800 Valve (EN Standard C95800 Valve, DIN Standard C95800 Valve);

EN 1092 PN 100 C95800 Valve (EN Standard C95800 Valve, DIN Standard C95800 Valve);

EN 1092 PN 160 C95800 Valve (EN Standard C95800 Valve, DIN Standard C95800 Valve);

EN 1092 PN 250 C95800 Valve (EN Standard C95800 Valve, DIN Standard C95800 Valve);

EN 1092 PN 320 C95800 Valve (EN Standard C95800 Valve, DIN Standard C95800 Valve);

EN 1092 PN 400 C95800 Valve (EN Standard C95800 Valve, DIN Standard C95800 Valve).



Working Temperature of C95800 Valve:

Please refer to the "Temperature and Pressure Curve of C95800 Valve" for temperature and pressure changes.



Ends Connection of C95800 Valve:

ANSI Flange Ends C95800 Valve;

ANSI Integral Flange Ends C95800 Valve;

ANSI Welded Flange Ends C95800 Valve;

Butt Weld (ASME B16.25) Ends C95800 Valve;

Butt Weld x ANSI Flange Ends C95800 Valve;

EN 1092 Flange Ends C95800 Valve;

EN 1092 Integral Flange Ends C95800 Valve;

EN 1092 Welded Flange Ends C95800 Valve;

Butt Weld (EN 12627) Ends C95800 Valve;

Butt Weld (ISO 1127) Ends C95800 Valve;

Butt Weld x EN 1092 Flange Ends C95800 Valve;

Male NPT (ASME B1.20.1) Ends C95800 Valve;

Male BSPP (ISO 228-1) Ends C95800 Valve;

Male BSPT (ISO 7-1) Ends C95800 Valve;

Male NPT x Female NPT Ends C95800 Valve;

Male BSPP x Female BSPP Ends C95800 Valve;

Male BSPT x Female BSPT Ends C95800 Valve;

Male NPT x Long Butt Weld (+100 mm) Ends C95800 Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends C95800 Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends C95800 Valve;

Female NPT (ASME B1.20.1) Ends C95800 Valve;

Female BSPP (ISO 228-1) Ends C95800 Valve;

Female BSPT (ISO 7-1) Ends C95800 Valve;

Socket Weld (ASME B16.11) Ends C95800 Valve;

Socket Weld (EN 12760) Ends C95800 Valve;

Female NPT x Socket Weld Ends C95800 Valve;

Female BSPP x Socket Weld Ends C95800 Valve;

Female BSPT x Socket Weld Ends C95800 Valve;

Butt Weld (ASME B16.25) Ends C95800 Valve;

Butt Weld (EN 12627) Ends C95800 Valve;

Female NPT x Butt Weld Ends C95800 Valve;

Female BSPP x Butt Weld Ends C95800 Valve;

Female BSPT x Butt Weld Ends C95800 Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends C95800 Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends C95800 Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends C95800 Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends C95800 Valve.



CE Marking of C95800 Valve:

CE Marking is Available to C95800 Valve with a Diameter of DN32 or Larger.



Chemical Composition of C95800 Valve:

For the Chemical Composition of C95800 Valve, please refer to EN 10204 Type 3.1 certificate.



Mechanical Properties of C95800 Valve:

For the Mechanical Properties of C95800 Valve, please refer to EN 10204 Type 3.1 certificate.



Certificate of C95800 Valve:

All C95800 Valve will be delivered with EN 10204 Type 3.1 Certificate.



Operation of C95800 Valve:

Level Operation of C95800 Valve;

Handwheel Operation of C95800 Valve;

Pneumatic Actuator Operation of C95800 Valve;

Electric Actuator Operation of C95800 Valve.



Approvals of C95800 Valve:

MSS SP-55 Certified of C95800 Valve;

NACE MR 0175 Certified of C95800 Valve

API 607 Fire Safe Certified of C95800 Valve;

ISO 9001 Certified of C95800 Valve;

PED Certified of C95800 Valve.



Available Upon Request of C95800 Valve:

NACE MR0175 is available upon request of C95800 Valve;

ATEX is available upon request of C95800 Valve;

TA-LUFT is available upon request of C95800 Valve;

SIL is available upon request of C95800 Valve;

Degreasing is available upon request of C95800 Valve;

Fire Safe is available upon request of C95800 Valve;

Stem Extension is available upon request of C95800 Valve;

Double Block and Bleed is available upon request of C95800 Valve.



Type of C95500 Valve:

C95500 Ball Valve;

C95500 Instrument Ball Valve;

C95500 Sleeve Plug Valve;

C95500 Wedge Gate Valve;

C95500 Globe Valve;

C95500 Swing Check Valve;

C95500 Lift Check Valve;

C95500 Piston Check Valve;

C95500 Wafer Check Valve;

C95500 Triple Offset Butterfly Valve;

C95500 Y Type Strainer;

C95500 T Type Strainer;

C95500 Basket Type Strainer;

C95500 Diaphragm Valve;

C95500 Spring Loaded Safety Valve.



Design and Test Standard of C95500 Valve:

C95500 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

C95500 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

C95500 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

C95500 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

C95500 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

C95500 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

C95500 Globe Valve Design Acc. to API 602, Test Acc. to API 598;

C95500 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C95500 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C95500 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C95500 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C95500 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Check Valve Design Acc. to API 602, Test Acc. to API 598;

C95500 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

C95500 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

C95500 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

C95500 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

C95500 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

C95500 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C95500 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

C95500 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.



Surface Finishing of C95500 Valve:

All C95500 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.



Size of C95500 Valve:

From 1/4’’ to 48’’ (ANSI Standard C95500 Valve);

From DN8 to DN1200 (EN Standard C95500 Valve, DIN Standard C95500 Valve).



Face to Face of C95500 Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard C95500 Valve);

Face to Face Acc. to EN 558-1 (EN Standard C95500 Valve, DIN Standard C95500 Valve).



Pressure Rating of C95500 Valve:

ANSI Class 150 C95500 Valve (ANSI Standard C95500 Valve);

ANSI Class 300 C95500 Valve (ANSI Standard C95500 Valve);

ANSI Class 600 C95500 Valve (ANSI Standard C95500 Valve);

ANSI Class 800 C95500 Valve (ANSI Standard C95500 Valve);

ANSI Class 900 C95500 Valve (ANSI Standard C95500 Valve);

ANSI Class 1500 C95500 Valve (ANSI Standard C95500 Valve);

ANSI Class 2500 C95500 Valve (ANSI Standard C95500 Valve);

EN 1092 PN 16 C95500 Valve (EN Standard C95500 Valve, DIN Standard C95500 Valve);

EN 1092 PN 25 C95500 Valve (EN Standard C95500 Valve, DIN Standard C95500 Valve);

EN 1092 PN 40 C95500 Valve (EN Standard C95500 Valve, DIN Standard C95500 Valve);

EN 1092 PN 63 C95500 Valve (EN Standard C95500 Valve, DIN Standard C95500 Valve);

EN 1092 PN 100 C95500 Valve (EN Standard C95500 Valve, DIN Standard C95500 Valve);

EN 1092 PN 160 C95500 Valve (EN Standard C95500 Valve, DIN Standard C95500 Valve);

EN 1092 PN 250 C95500 Valve (EN Standard C95500 Valve, DIN Standard C95500 Valve);

EN 1092 PN 320 C95500 Valve (EN Standard C95500 Valve, DIN Standard C95500 Valve);

EN 1092 PN 400 C95500 Valve (EN Standard C95500 Valve, DIN Standard C95500 Valve).



Working Temperature of C95500 Valve:

Please refer to the "Temperature and Pressure Curve of C95500 Valve" for temperature and pressure changes.



Ends Connection of C95500 Valve:

ANSI Flange Ends C95500 Valve;

ANSI Integral Flange Ends C95500 Valve;

ANSI Welded Flange Ends C95500 Valve;

Butt Weld (ASME B16.25) Ends C95500 Valve;

Butt Weld x ANSI Flange Ends C95500 Valve;

EN 1092 Flange Ends C95500 Valve;

EN 1092 Integral Flange Ends C95500 Valve;

EN 1092 Welded Flange Ends C95500 Valve;

Butt Weld (EN 12627) Ends C95500 Valve;

Butt Weld (ISO 1127) Ends C95500 Valve;

Butt Weld x EN 1092 Flange Ends C95500 Valve;

Male NPT (ASME B1.20.1) Ends C95500 Valve;

Male BSPP (ISO 228-1) Ends C95500 Valve;

Male BSPT (ISO 7-1) Ends C95500 Valve;

Male NPT x Female NPT Ends C95500 Valve;

Male BSPP x Female BSPP Ends C95500 Valve;

Male BSPT x Female BSPT Ends C95500 Valve;

Male NPT x Long Butt Weld (+100 mm) Ends C95500 Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends C95500 Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends C95500 Valve;

Female NPT (ASME B1.20.1) Ends C95500 Valve;

Female BSPP (ISO 228-1) Ends C95500 Valve;

Female BSPT (ISO 7-1) Ends C95500 Valve;

Socket Weld (ASME B16.11) Ends C95500 Valve;

Socket Weld (EN 12760) Ends C95500 Valve;

Female NPT x Socket Weld Ends C95500 Valve;

Female BSPP x Socket Weld Ends C95500 Valve;

Female BSPT x Socket Weld Ends C95500 Valve;

Butt Weld (ASME B16.25) Ends C95500 Valve;

Butt Weld (EN 12627) Ends C95500 Valve;

Female NPT x Butt Weld Ends C95500 Valve;

Female BSPP x Butt Weld Ends C95500 Valve;

Female BSPT x Butt Weld Ends C95500 Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends C95500 Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends C95500 Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends C95500 Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends C95500 Valve.



CE Marking of C95500 Valve:

CE Marking is Available to C95500 Valve with a Diameter of DN32 or Larger.



Chemical Composition of C95500 Valve:

For the Chemical Composition of C95500 Valve, please refer to EN 10204 Type 3.1 certificate.



Mechanical Properties of C95500 Valve:

For the Mechanical Properties of C95500 Valve, please refer to EN 10204 Type 3.1 certificate.



Certificate of C95500 Valve:

All C95500 Valve will be delivered with EN 10204 Type 3.1 Certificate.



Operation of C95500 Valve:

Level Operation of C95500 Valve;

Handwheel Operation of C95500 Valve;

Pneumatic Actuator Operation of C95500 Valve;

Electric Actuator Operation of C95500 Valve.



Approvals of C95500 Valve:

MSS SP-55 Certified of C95500 Valve;

NACE MR 0175 Certified of C95500 Valve

API 607 Fire Safe Certified of C95500 Valve;

ISO 9001 Certified of C95500 Valve;

PED Certified of C95500 Valve.



Available Upon Request of C95500 Valve:

NACE MR0175 is available upon request of C95500 Valve;

ATEX is available upon request of C95500 Valve;

TA-LUFT is available upon request of C95500 Valve;

SIL is available upon request of C95500 Valve;

Degreasing is available upon request of C95500 Valve;

Fire Safe is available upon request of C95500 Valve;

Stem Extension is available upon request of C95500 Valve;

Double Block and Bleed is available upon request of C95500 Valve.



Type of C63000 Valve:

C63000 Ball Valve;

C63000 Instrument Ball Valve;

C63000 Sleeve Plug Valve;

C63000 Wedge Gate Valve;

C63000 Globe Valve;

C63000 Swing Check Valve;

C63000 Lift Check Valve;

C63000 Piston Check Valve;

C63000 Wafer Check Valve;

C63000 Triple Offset Butterfly Valve;

C63000 Y Type Strainer;

C63000 T Type Strainer;

C63000 Basket Type Strainer;

C63000 Diaphragm Valve;

C63000 Spring Loaded Safety Valve.



Design and Test Standard of C63000 Valve:

C63000 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

C63000 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

C63000 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

C63000 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

C63000 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

C63000 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

C63000 Globe Valve Design Acc. to API 602, Test Acc. to API 598;

C63000 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C63000 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C63000 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C63000 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

C63000 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Check Valve Design Acc. to API 602, Test Acc. to API 598;

C63000 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

C63000 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

C63000 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

C63000 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

C63000 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

C63000 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

C63000 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

C63000 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.



Surface Finishing of C63000 Valve:

All C63000 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.



Size of C63000 Valve:

From 1/4’’ to 48’’ (ANSI Standard C63000 Valve);

From DN8 to DN1200 (EN Standard C63000 Valve, DIN Standard C63000 Valve).



Face to Face of C63000 Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard C63000 Valve);

Face to Face Acc. to EN 558-1 (EN Standard C63000 Valve, DIN Standard C63000 Valve).



Pressure Rating of C63000 Valve:

ANSI Class 150 C63000 Valve (ANSI Standard C63000 Valve);

ANSI Class 300 C63000 Valve (ANSI Standard C63000 Valve);

ANSI Class 600 C63000 Valve (ANSI Standard C63000 Valve);

ANSI Class 800 C63000 Valve (ANSI Standard C63000 Valve);

ANSI Class 900 C63000 Valve (ANSI Standard C63000 Valve);

ANSI Class 1500 C63000 Valve (ANSI Standard C63000 Valve);

ANSI Class 2500 C63000 Valve (ANSI Standard C63000 Valve);

EN 1092 PN 16 C63000 Valve (EN Standard C63000 Valve, DIN Standard C63000 Valve);

EN 1092 PN 25 C63000 Valve (EN Standard C63000 Valve, DIN Standard C63000 Valve);

EN 1092 PN 40 C63000 Valve (EN Standard C63000 Valve, DIN Standard C63000 Valve);

EN 1092 PN 63 C63000 Valve (EN Standard C63000 Valve, DIN Standard C63000 Valve);

EN 1092 PN 100 C63000 Valve (EN Standard C63000 Valve, DIN Standard C63000 Valve);

EN 1092 PN 160 C63000 Valve (EN Standard C63000 Valve, DIN Standard C63000 Valve);

EN 1092 PN 250 C63000 Valve (EN Standard C63000 Valve, DIN Standard C63000 Valve);

EN 1092 PN 320 C63000 Valve (EN Standard C63000 Valve, DIN Standard C63000 Valve);

EN 1092 PN 400 C63000 Valve (EN Standard C63000 Valve, DIN Standard C63000 Valve).



Working Temperature of C63000 Valve:

Please refer to the "Temperature and Pressure Curve of C63000 Valve" for temperature and pressure changes.



Ends Connection of C63000 Valve:

ANSI Flange Ends C63000 Valve;

ANSI Integral Flange Ends C63000 Valve;

ANSI Welded Flange Ends C63000 Valve;

Butt Weld (ASME B16.25) Ends C63000 Valve;

Butt Weld x ANSI Flange Ends C63000 Valve;

EN 1092 Flange Ends C63000 Valve;

EN 1092 Integral Flange Ends C63000 Valve;

EN 1092 Welded Flange Ends C63000 Valve;

Butt Weld (EN 12627) Ends C63000 Valve;

Butt Weld (ISO 1127) Ends C63000 Valve;

Butt Weld x EN 1092 Flange Ends C63000 Valve;

Male NPT (ASME B1.20.1) Ends C63000 Valve;

Male BSPP (ISO 228-1) Ends C63000 Valve;

Male BSPT (ISO 7-1) Ends C63000 Valve;

Male NPT x Female NPT Ends C63000 Valve;

Male BSPP x Female BSPP Ends C63000 Valve;

Male BSPT x Female BSPT Ends C63000 Valve;

Male NPT x Long Butt Weld (+100 mm) Ends C63000 Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends C63000 Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends C63000 Valve;

Female NPT (ASME B1.20.1) Ends C63000 Valve;

Female BSPP (ISO 228-1) Ends C63000 Valve;

Female BSPT (ISO 7-1) Ends C63000 Valve;

Socket Weld (ASME B16.11) Ends C63000 Valve;

Socket Weld (EN 12760) Ends C63000 Valve;

Female NPT x Socket Weld Ends C63000 Valve;

Female BSPP x Socket Weld Ends C63000 Valve;

Female BSPT x Socket Weld Ends C63000 Valve;

Butt Weld (ASME B16.25) Ends C63000 Valve;

Butt Weld (EN 12627) Ends C63000 Valve;

Female NPT x Butt Weld Ends C63000 Valve;

Female BSPP x Butt Weld Ends C63000 Valve;

Female BSPT x Butt Weld Ends C63000 Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends C63000 Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends C63000 Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends C63000 Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends C63000 Valve.



CE Marking of C63000 Valve:

CE Marking is Available to C63000 Valve with a Diameter of DN32 or Larger.



Chemical Composition of C63000 Valve:

For the Chemical Composition of C63000 Valve, please refer to EN 10204 Type 3.1 certificate.



Mechanical Properties of C63000 Valve:

For the Mechanical Properties of C63000 Valve, please refer to EN 10204 Type 3.1 certificate.



Certificate of C63000 Valve:

All C63000 Valve will be delivered with EN 10204 Type 3.1 Certificate.



Operation of C63000 Valve:

Level Operation of C63000 Valve;

Handwheel Operation of C63000 Valve;

Pneumatic Actuator Operation of C63000 Valve;

Electric Actuator Operation of C63000 Valve.



Approvals of C63000 Valve:

MSS SP-55 Certified of C63000 Valve;

NACE MR 0175 Certified of C63000 Valve

API 607 Fire Safe Certified of C63000 Valve;

ISO 9001 Certified of C63000 Valve;

PED Certified of C63000 Valve.



Available Upon Request of C63000 Valve:

NACE MR0175 is available upon request of C63000 Valve;

ATEX is available upon request of C63000 Valve;

TA-LUFT is available upon request of C63000 Valve;

SIL is available upon request of C63000 Valve;

Degreasing is available upon request of C63000 Valve;

Fire Safe is available upon request of C63000 Valve;

Stem Extension is available upon request of C63000 Valve;

Double Block and Bleed is available upon request of C63000 Valve.



Copyright © Freeman Valve, a Trademark of The Freeman Group
