Inconel 625 Valve, EN 2.4856 Valve

1. Key Features of Inconel 625 Valves:

Inconel 625 valves are alloy valves capable of withstanding various extreme corrosive environments and high-temperature effects, with a maximum operating temperature of 982℃ (1800℉). The most important features of Inconel 625 valves are their high-temperature resistance, corrosion resistance, oxidation resistance, and creep resistance.

2. Freeman Valve's Inconel 625 valves offer the following advantages:

2.1 Freeman Valve's Inconel 625 valves exhibit excellent corrosion resistance to both oxidizing acids (nitric acid, chromic acid) and reducing acids (sulfuric acid, hydrochloric acid), particularly performing exceptionally well under low- and medium-temperature conditions with dilute hydrochloric acid and moderately concentrated sulfuric acid.

2.2 Freeman Valve's Inconel 625 valves demonstrate superior resistance to chloride pitting, crevice corrosion, and stress corrosion cracking (SCC) compared to Incoloy 825, allowing them to withstand long-term corrosion from highly chlorinated media such as seawater, brine, and brines.

2.3 Freeman Valve's Inconel 625 valves are resistant to sulfide and fluoride corrosion, making them suitable for complex corrosive environments such as acidic oil and gas wells and hydrometallurgical processes.

2.4 Freeman Valve's Inconel 625 valves exhibit stable mechanical properties over a wide temperature range.

①Inconel 625 valves have a tensile strength of approximately 690 MPa at room temperature in the solution-treated state, with an elongation of ≥30% and excellent toughness.

②Inconel 625 valves maintain sufficient strength and creep resistance even at high temperatures up to 982℃, and show no risk of brittle fracture at temperatures down to -253℃.

③Inconel 625 valves do not require aging treatment, avoiding performance fluctuations caused by aging processes, and exhibit high batch-to-batch material stability.

2.5 Freeman Valve's Inconel 625 valves possess excellent oxidation resistance and heat resistance.

①Inconel 625 valves exhibit good oxidation resistance in static air below 982℃, forming a dense chromium-nickel oxide film on the surface, which resists oxidative corrosion from high-temperature combustion gases.

②Inconel 625 valves can withstand instantaneous operating temperatures up to 1090℃.

③Inconel 625 valves have good resistance to thermal fatigue and can withstand repeated temperature changes.

2.6 Freeman Valve's Inconel 625 valves exhibit excellent weldability.

Inconel 625 valves can be welded using conventional processes such as argon arc welding and electron beam welding. The strength and corrosion resistance of the weld joint are essentially the same as the base material. Furthermore, Inconel 625 valves require no heat treatment after welding, making them ideal for large-diameter applications.

2.7 Freeman Valve's Inconel 625 valves demonstrate good radiation resistance.

Inconel 625 valves exhibit good resistance to neutron and gamma-ray radiation, with minimal performance degradation after irradiation, making them suitable for the radiation environment of the nuclear industry.

3. The following points should be noted when using Inconel 625 valves: Limited resistance to hot corrosion:

In high-temperature gas environments containing sulfur and vanadium (such as marine diesel engine exhaust and coal-fired boiler flue gas), their resistance to hot corrosion is relatively weak, requiring the application of a protective coating (such as an aluminum-chromium coating) for long-term use.

Type of INCONEL 625 Valve:

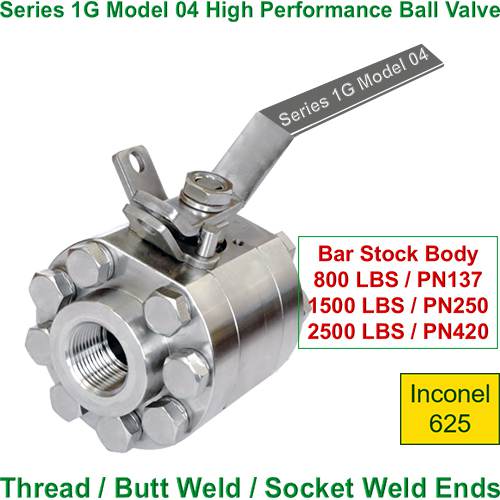

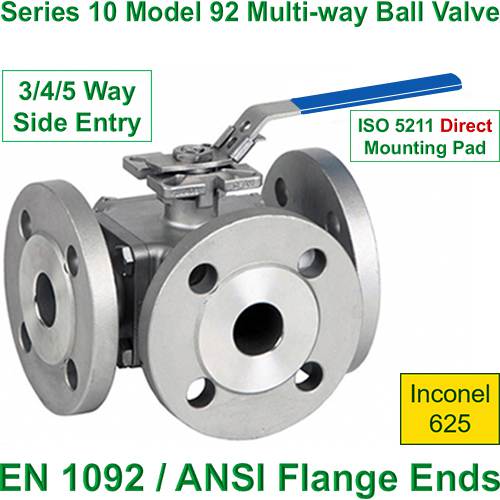

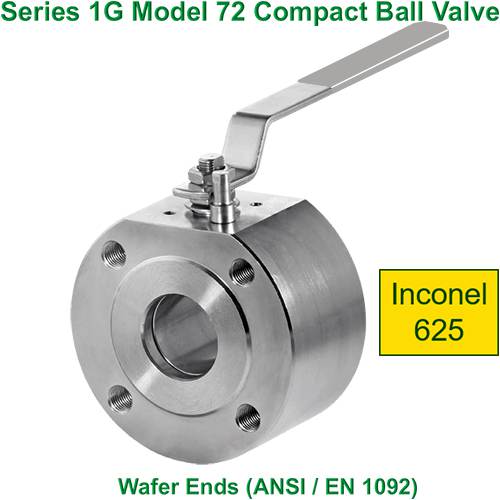

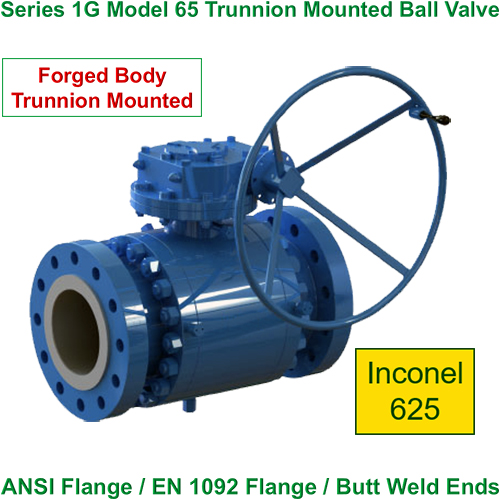

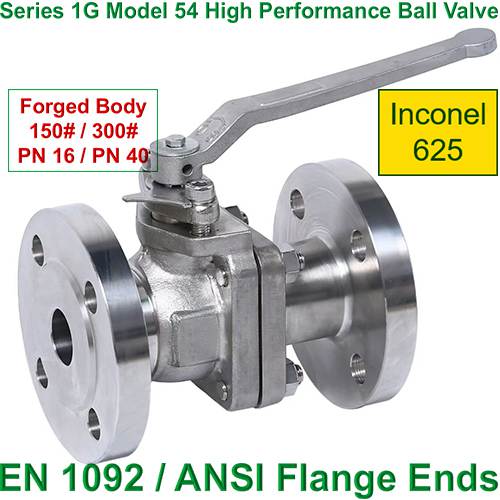

INCONEL 625 Ball Valve;

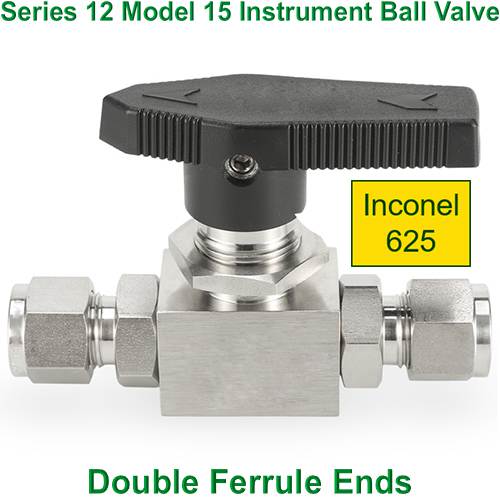

INCONEL 625 Instrument Ball Valve;

INCONEL 625 Sleeve Plug Valve;

INCONEL 625 Wedge Gate Valve;

INCONEL 625 Globe Valve;

INCONEL 625 Swing Check Valve;

INCONEL 625 Lift Check Valve;

INCONEL 625 Piston Check Valve;

INCONEL 625 Wafer Check Valve;

INCONEL 625 Triple Offset Butterfly Valve;

INCONEL 625 Y Type Strainer;

INCONEL 625 T Type Strainer;

INCONEL 625 Basket Type Strainer;

INCONEL 625 Diaphragm Valve;

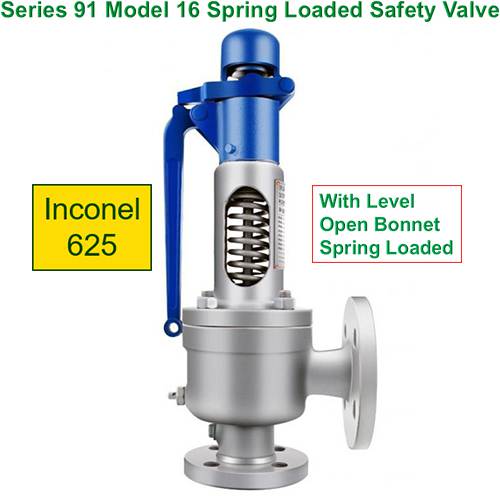

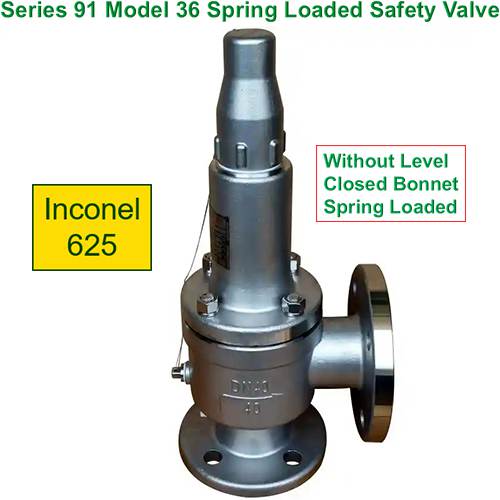

INCONEL 625 Spring Loaded Safety Valve.

Design and Test Standard of INCONEL 625 Valve:

INCONEL 625 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 625 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 625 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

INCONEL 625 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

INCONEL 625 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

INCONEL 625 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

INCONEL 625 Globe Valve Design Acc. to API 602, Test Acc. to API 598;

INCONEL 625 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

INCONEL 625 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

INCONEL 625 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

INCONEL 625 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

INCONEL 625 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Check Valve Design Acc. to API 602, Test Acc. to API 598;

INCONEL 625 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

INCONEL 625 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 625 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 625 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 625 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

INCONEL 625 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

INCONEL 625 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

INCONEL 625 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.

Surface Finishing of INCONEL 625 Valve:

All INCONEL 625 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.

Size of INCONEL 625 Valve:

From 1/4’’ to 48’’ (ANSI Standard INCONEL 625 Valve);

From DN8 to DN1200 (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve).

Face to Face of INCONEL 625 Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard INCONEL 625 Valve);

Face to Face Acc. to EN 558-1 (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve).

Pressure Rating of INCONEL 625 Valve:

ANSI Class 150 INCONEL 625 Valve (ANSI Standard INCONEL 625 Valve);

ANSI Class 300 INCONEL 625 Valve (ANSI Standard INCONEL 625 Valve);

ANSI Class 600 INCONEL 625 Valve (ANSI Standard INCONEL 625 Valve);

ANSI Class 800 INCONEL 625 Valve (ANSI Standard INCONEL 625 Valve);

ANSI Class 900 INCONEL 625 Valve (ANSI Standard INCONEL 625 Valve);

ANSI Class 1500 INCONEL 625 Valve (ANSI Standard INCONEL 625 Valve);

ANSI Class 2500 INCONEL 625 Valve (ANSI Standard INCONEL 625 Valve);

EN 1092 PN 16 INCONEL 625 Valve (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve);

EN 1092 PN 25 INCONEL 625 Valve (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve);

EN 1092 PN 40 INCONEL 625 Valve (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve);

EN 1092 PN 63 INCONEL 625 Valve (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve);

EN 1092 PN 100 INCONEL 625 Valve (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve);

EN 1092 PN 160 INCONEL 625 Valve (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve);

EN 1092 PN 250 INCONEL 625 Valve (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve);

EN 1092 PN 320 INCONEL 625 Valve (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve);

EN 1092 PN 400 INCONEL 625 Valve (EN Standard INCONEL 625 Valve, DIN Standard INCONEL 625 Valve).

Working Temperature of INCONEL 625 Valve:

Please refer to the "Temperature and Pressure Curve of INCONEL 625 Valve" for temperature and pressure changes.

Ends Connection of INCONEL 625 Valve:

ANSI Flange Ends INCONEL 625 Valve;

ANSI Integral Flange Ends INCONEL 625 Valve;

ANSI Welded Flange Ends INCONEL 625 Valve;

Butt Weld (ASME B16.25) Ends INCONEL 625 Valve;

Butt Weld x ANSI Flange Ends INCONEL 625 Valve;

EN 1092 Flange Ends INCONEL 625 Valve;

EN 1092 Integral Flange Ends INCONEL 625 Valve;

EN 1092 Welded Flange Ends INCONEL 625 Valve;

Butt Weld (EN 12627) Ends INCONEL 625 Valve;

Butt Weld (ISO 1127) Ends INCONEL 625 Valve;

Butt Weld x EN 1092 Flange Ends INCONEL 625 Valve;

Male NPT (ASME B1.20.1) Ends INCONEL 625 Valve;

Male BSPP (ISO 228-1) Ends INCONEL 625 Valve;

Male BSPT (ISO 7-1) Ends INCONEL 625 Valve;

Male NPT x Female NPT Ends INCONEL 625 Valve;

Male BSPP x Female BSPP Ends INCONEL 625 Valve;

Male BSPT x Female BSPT Ends INCONEL 625 Valve;

Male NPT x Long Butt Weld (+100 mm) Ends INCONEL 625 Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends INCONEL 625 Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends INCONEL 625 Valve;

Female NPT (ASME B1.20.1) Ends INCONEL 625 Valve;

Female BSPP (ISO 228-1) Ends INCONEL 625 Valve;

Female BSPT (ISO 7-1) Ends INCONEL 625 Valve;

Socket Weld (ASME B16.11) Ends INCONEL 625 Valve;

Socket Weld (EN 12760) Ends INCONEL 625 Valve;

Female NPT x Socket Weld Ends INCONEL 625 Valve;

Female BSPP x Socket Weld Ends INCONEL 625 Valve;

Female BSPT x Socket Weld Ends INCONEL 625 Valve;

Butt Weld (ASME B16.25) Ends INCONEL 625 Valve;

Butt Weld (EN 12627) Ends INCONEL 625 Valve;

Female NPT x Butt Weld Ends INCONEL 625 Valve;

Female BSPP x Butt Weld Ends INCONEL 625 Valve;

Female BSPT x Butt Weld Ends INCONEL 625 Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends INCONEL 625 Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends INCONEL 625 Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends INCONEL 625 Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends INCONEL 625 Valve.

CE Marking of INCONEL 625 Valve:

CE Marking is Available to INCONEL 625 Valve with a Diameter of DN32 or Larger.

Chemical Composition of INCONEL 625 Valve:

For the Chemical Composition of INCONEL 625 Valve, please refer to EN 10204 Type 3.1 certificate.

Mechanical Properties of INCONEL 625 Valve:

For the Mechanical Properties of INCONEL 625 Valve, please refer to EN 10204 Type 3.1 certificate.

Certificate of INCONEL 625 Valve:

All INCONEL 625 Valve will be delivered with EN 10204 Type 3.1 Certificate.

Operation of INCONEL 625 Valve:

Level Operation of INCONEL 625 Valve;

Handwheel Operation of INCONEL 625 Valve;

Pneumatic Actuator Operation of INCONEL 625 Valve;

Electric Actuator Operation of INCONEL 625 Valve.

Approvals of INCONEL 625 Valve:

MSS SP-55 Certified of INCONEL 625 Valve;

NACE MR 0175 Certified of INCONEL 625 Valve

API 607 Fire Safe Certified of INCONEL 625 Valve;

ISO 9001 Certified of INCONEL 625 Valve;

PED Certified of INCONEL 625 Valve.

Available Upon Request of INCONEL 625 Valve:

NACE MR0175 is available upon request of INCONEL 625 Valve;

ATEX is available upon request of INCONEL 625 Valve;

TA-LUFT is available upon request of INCONEL 625 Valve;

SIL is available upon request of INCONEL 625 Valve;

Degreasing is available upon request of INCONEL 625 Valve;

Fire Safe is available upon request of INCONEL 625 Valve;

Stem Extension is available upon request of INCONEL 625 Valve;

Double Block and Bleed is available upon request of INCONEL 625 Valve.

Type of EN 2.4856 Valve:

EN 2.4856 Ball Valve;

EN 2.4856 Instrument Ball Valve;

EN 2.4856 Sleeve Plug Valve;

EN 2.4856 Wedge Gate Valve;

EN 2.4856 Globe Valve;

EN 2.4856 Swing Check Valve;

EN 2.4856 Lift Check Valve;

EN 2.4856 Piston Check Valve;

EN 2.4856 Wafer Check Valve;

EN 2.4856 Triple Offset Butterfly Valve;

EN 2.4856 Y Type Strainer;

EN 2.4856 T Type Strainer;

EN 2.4856 Basket Type Strainer;

EN 2.4856 Diaphragm Valve;

EN 2.4856 Spring Loaded Safety Valve.

Design and Test Standard of EN 2.4856 Valve:

EN 2.4856 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4856 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4856 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

EN 2.4856 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

EN 2.4856 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

EN 2.4856 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

EN 2.4856 Globe Valve Design Acc. to API 602, Test Acc. to API 598;

EN 2.4856 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 2.4856 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 2.4856 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 2.4856 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 2.4856 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Check Valve Design Acc. to API 602, Test Acc. to API 598;

EN 2.4856 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

EN 2.4856 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4856 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4856 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4856 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 2.4856 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 2.4856 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

EN 2.4856 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.

Surface Finishing of EN 2.4856 Valve:

All EN 2.4856 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.

Size of EN 2.4856 Valve:

From 1/4’’ to 48’’ (ANSI Standard EN 2.4856 Valve);

From DN8 to DN1200 (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve).

Face to Face of EN 2.4856 Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard EN 2.4856 Valve);

Face to Face Acc. to EN 558-1 (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve).

Pressure Rating of EN 2.4856 Valve:

ANSI Class 150 EN 2.4856 Valve (ANSI Standard EN 2.4856 Valve);

ANSI Class 300 EN 2.4856 Valve (ANSI Standard EN 2.4856 Valve);

ANSI Class 600 EN 2.4856 Valve (ANSI Standard EN 2.4856 Valve);

ANSI Class 800 EN 2.4856 Valve (ANSI Standard EN 2.4856 Valve);

ANSI Class 900 EN 2.4856 Valve (ANSI Standard EN 2.4856 Valve);

ANSI Class 1500 EN 2.4856 Valve (ANSI Standard EN 2.4856 Valve);

ANSI Class 2500 EN 2.4856 Valve (ANSI Standard EN 2.4856 Valve);

EN 1092 PN 16 EN 2.4856 Valve (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve);

EN 1092 PN 25 EN 2.4856 Valve (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve);

EN 1092 PN 40 EN 2.4856 Valve (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve);

EN 1092 PN 63 EN 2.4856 Valve (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve);

EN 1092 PN 100 EN 2.4856 Valve (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve);

EN 1092 PN 160 EN 2.4856 Valve (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve);

EN 1092 PN 250 EN 2.4856 Valve (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve);

EN 1092 PN 320 EN 2.4856 Valve (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve);

EN 1092 PN 400 EN 2.4856 Valve (EN Standard EN 2.4856 Valve, DIN Standard EN 2.4856 Valve).

Working Temperature of EN 2.4856 Valve:

Please refer to the "Temperature and Pressure Curve of EN 2.4856 Valve" for temperature and pressure changes.

Ends Connection of EN 2.4856 Valve:

ANSI Flange Ends EN 2.4856 Valve;

ANSI Integral Flange Ends EN 2.4856 Valve;

ANSI Welded Flange Ends EN 2.4856 Valve;

Butt Weld (ASME B16.25) Ends EN 2.4856 Valve;

Butt Weld x ANSI Flange Ends EN 2.4856 Valve;

EN 1092 Flange Ends EN 2.4856 Valve;

EN 1092 Integral Flange Ends EN 2.4856 Valve;

EN 1092 Welded Flange Ends EN 2.4856 Valve;

Butt Weld (EN 12627) Ends EN 2.4856 Valve;

Butt Weld (ISO 1127) Ends EN 2.4856 Valve;

Butt Weld x EN 1092 Flange Ends EN 2.4856 Valve;

Male NPT (ASME B1.20.1) Ends EN 2.4856 Valve;

Male BSPP (ISO 228-1) Ends EN 2.4856 Valve;

Male BSPT (ISO 7-1) Ends EN 2.4856 Valve;

Male NPT x Female NPT Ends EN 2.4856 Valve;

Male BSPP x Female BSPP Ends EN 2.4856 Valve;

Male BSPT x Female BSPT Ends EN 2.4856 Valve;

Male NPT x Long Butt Weld (+100 mm) Ends EN 2.4856 Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends EN 2.4856 Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends EN 2.4856 Valve;

Female NPT (ASME B1.20.1) Ends EN 2.4856 Valve;

Female BSPP (ISO 228-1) Ends EN 2.4856 Valve;

Female BSPT (ISO 7-1) Ends EN 2.4856 Valve;

Socket Weld (ASME B16.11) Ends EN 2.4856 Valve;

Socket Weld (EN 12760) Ends EN 2.4856 Valve;

Female NPT x Socket Weld Ends EN 2.4856 Valve;

Female BSPP x Socket Weld Ends EN 2.4856 Valve;

Female BSPT x Socket Weld Ends EN 2.4856 Valve;

Butt Weld (ASME B16.25) Ends EN 2.4856 Valve;

Butt Weld (EN 12627) Ends EN 2.4856 Valve;

Female NPT x Butt Weld Ends EN 2.4856 Valve;

Female BSPP x Butt Weld Ends EN 2.4856 Valve;

Female BSPT x Butt Weld Ends EN 2.4856 Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends EN 2.4856 Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends EN 2.4856 Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends EN 2.4856 Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends EN 2.4856 Valve.

CE Marking of EN 2.4856 Valve:

CE Marking is Available to EN 2.4856 Valve with a Diameter of DN32 or Larger.

Chemical Composition of EN 2.4856 Valve:

For the Chemical Composition of EN 2.4856 Valve, please refer to EN 10204 Type 3.1 certificate.

Mechanical Properties of EN 2.4856 Valve:

For the Mechanical Properties of EN 2.4856 Valve, please refer to EN 10204 Type 3.1 certificate.

Certificate of EN 2.4856 Valve:

All EN 2.4856 Valve will be delivered with EN 10204 Type 3.1 Certificate.

Operation of EN 2.4856 Valve:

Level Operation of EN 2.4856 Valve;

Handwheel Operation of EN 2.4856 Valve;

Pneumatic Actuator Operation of EN 2.4856 Valve;

Electric Actuator Operation of EN 2.4856 Valve.

Approvals of EN 2.4856 Valve:

MSS SP-55 Certified of EN 2.4856 Valve;

NACE MR 0175 Certified of EN 2.4856 Valve

API 607 Fire Safe Certified of EN 2.4856 Valve;

ISO 9001 Certified of EN 2.4856 Valve;

PED Certified of EN 2.4856 Valve.

Available Upon Request of EN 2.4856 Valve:

NACE MR0175 is available upon request of EN 2.4856 Valve;

ATEX is available upon request of EN 2.4856 Valve;

TA-LUFT is available upon request of EN 2.4856 Valve;

SIL is available upon request of EN 2.4856 Valve;

Degreasing is available upon request of EN 2.4856 Valve;

Fire Safe is available upon request of EN 2.4856 Valve;

Stem Extension is available upon request of EN 2.4856 Valve;

Double Block and Bleed is available upon request of EN 2.4856 Valve.
