1. Key Features of F9 (EN 1.7386) Valves:

F9 (EN 1.7386) is a high-chromium, molybdenum (9% Cr - 1% Mo) heat-resistant alloy steel. F9 valves are specifically designed for high-temperature, high-pressure environments, exhibiting excellent creep resistance, oxidation resistance, crack resistance, and a low thermal expansion rate.

2. Key Advantages of Freeman Valve's F9 Valves:

2.1 Excellent Resistance to High-Temperature Oxidation and Sulfide Corrosion in Freeman Valve's F9 Valves:

① F9 valves contain 9% Cr, therefore their resistance to high-temperature H₂S sulfide corrosion is far superior to F5 and F22;

② F9 valves have a high silicon content, enabling the formation of a dense, high-temperature oxide film, making them suitable for high-temperature sulfur environments such as furnace outlets;

2.2 Excellent Resistance to High-Temperature Hydrogen Corrosion in Freeman Valve's F9 Valves:

F9 valves meet the high-parameter hydrogen-critical conditions of the Nelson curve, exhibiting superior resistance to hydrogen embrittlement and hydrogen-induced cracking compared to F22, making them suitable for high-temperature hydrogenation units.

3. Precautions for using F9 valves:

3.1 F9 valves lack V-Nb-N dispersion strengthening, resulting in weaker high-temperature creep compared to F91 valves:

① The creep strength of F9 valves decreases significantly at temperatures >590℃, and their endurance strength at the same temperature is significantly lower than that of F91 valves, making them unsuitable for supercritical main steam pipelines;

② F9 valves prioritize resistance to sulfidation, while F91 valves prioritize creep strength under pure steam conditions;

3.2 F9 valves have a very strong hardening tendency, making welding difficult:

① F9 valves can be hardened in air, and the heat-affected zone after welding easily forms hard and brittle martensite;

② Preheating before welding and post-weld PWHT are absolutely essential for F9 valves.

4. Key application areas for Freeman Valve's F9 valves:

4.1 Freeman Valve's F9 valves have been widely used in refinery heating furnaces, coking plants, and catalytic cracking units. For example:

① Heating furnace outlet manifold, oil transfer line;

② High-temperature oil and gas + H₂S sulfidation environment (most typical scenario for F9 valves);

③ When F22/F5 valves are insufficient for sulfidation resistance, F9 valves are selected;

4.2 Freeman Valve's F9 valves have been widely used in high-temperature hydrogen-contaminated pipelines of hydrogenation units. For example:

Hydrocracking, hydrodesulfurization high-temperature loops, reactor inlet and outlet bypass lines, heating furnace section (F91 valves are preferred for pure high-temperature main steam operation, F9 valves are not used);

4.3 Freeman Valve's F9 valves have been widely used in boiler superheaters and reheater components. For example:

Subcritical boiler superheaters and reheaters;

4.4 Freeman Valve's F9 valves have been widely used in high-temperature process pipelines of ethylene cracking furnaces. For example:

High-temperature cracked oil and gas, oxidation + sulfidation coexisting conditions.

5. Summary:

Operating conditions for selecting F9 valves:

① Resistance to high-temperature sulfide corrosion;

② High-temperature, high-pressure hydrogen-containing process oil-gas mixtures containing hydrogen sulfide (H₂S);

Operating conditions for selecting F91 valves:

① Pure steam media with ultra-high creep strength;

② Supercritical thermal power systems.

Main Features of F9 Valve, EN 1.7386 Valve

Type of F9 Valve:

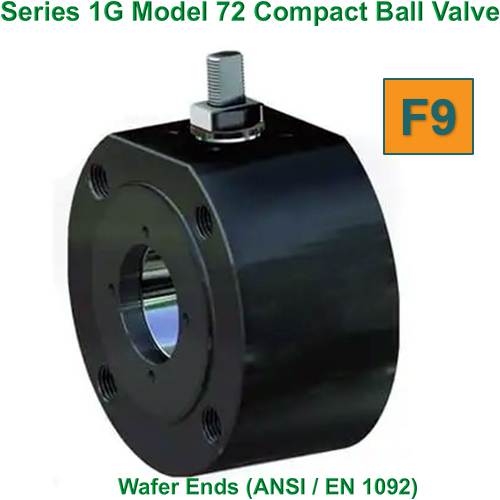

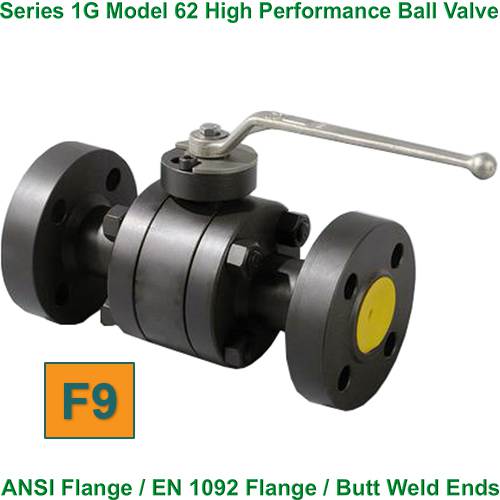

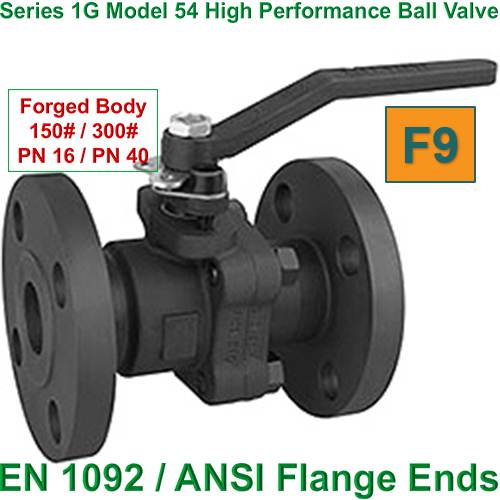

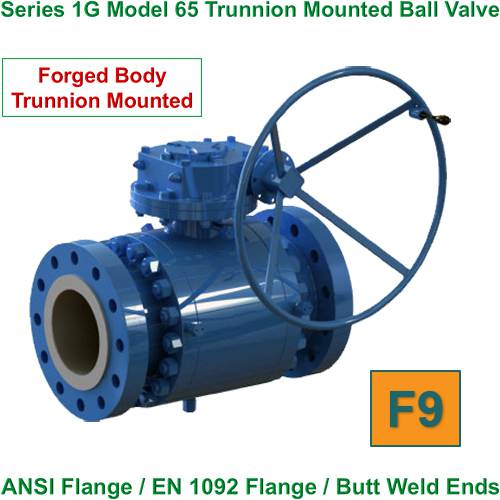

F9 Ball Valve;

F9 Instrument Ball Valve;

F9 Sleeve Plug Valve;

F9 Wedge Gate Valve;

F9 Globe Valve;

F9 Swing Check Valve;

F9 Lift Check Valve;

F9 Piston Check Valve;

F9 Wafer Check Valve;

F9 Triple Offset Butterfly Valve;

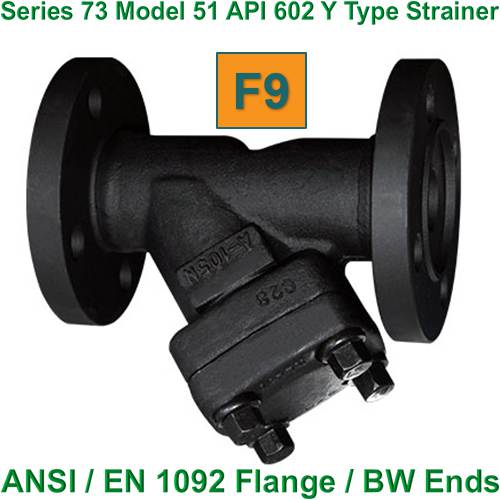

F9 Y Type Strainer;

F9 T Type Strainer;

F9 Basket Type Strainer;

F9 Diaphragm Valve;

F9 Spring Loaded Safety Valve.

Design and Test Standard of F9 Valve:

F9 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

F9 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

F9 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

F9 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

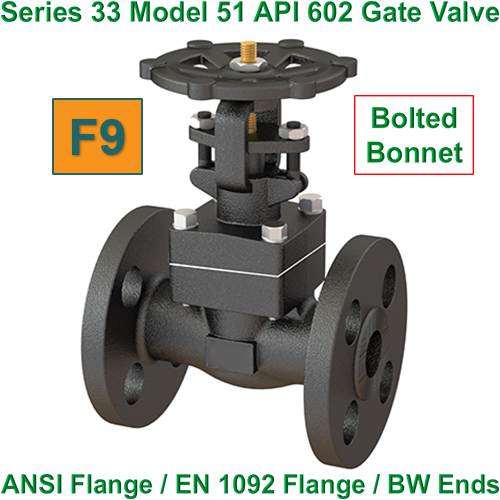

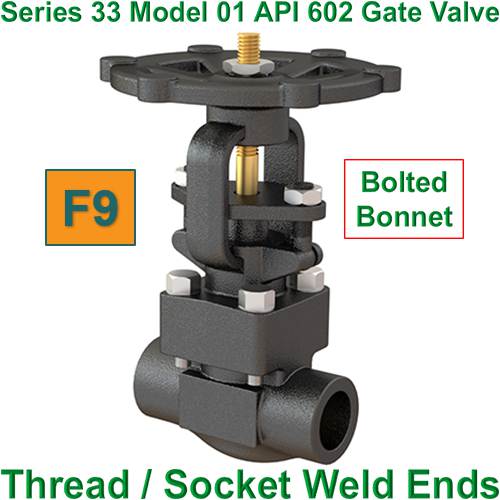

F9 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

F9 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

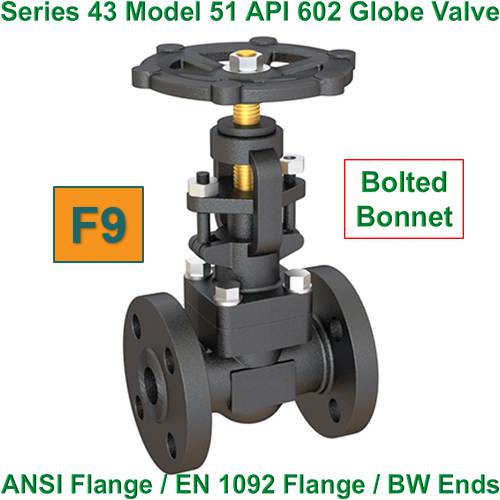

F9 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

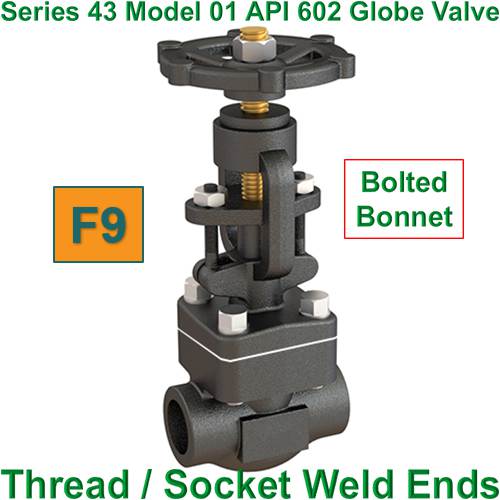

F9 Globe Valve Design Acc. to API 602, Test Acc. to API 598;

F9 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

F9 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

F9 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

F9 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

F9 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

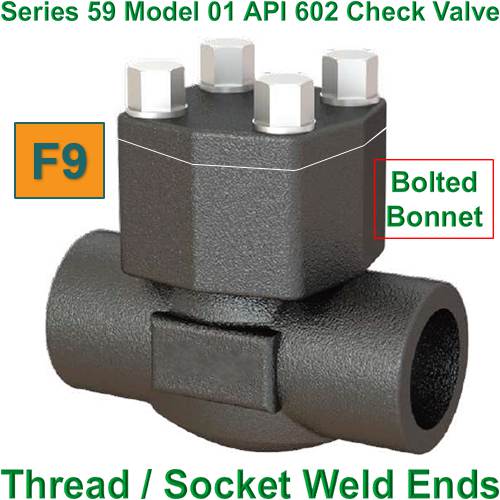

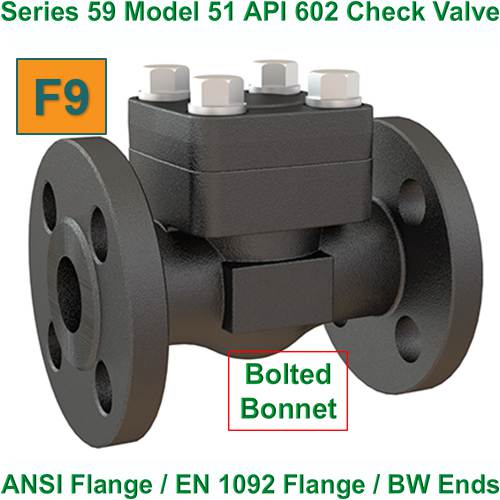

F9 Check Valve Design Acc. to API 602, Test Acc. to API 598;

F9 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

F9 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

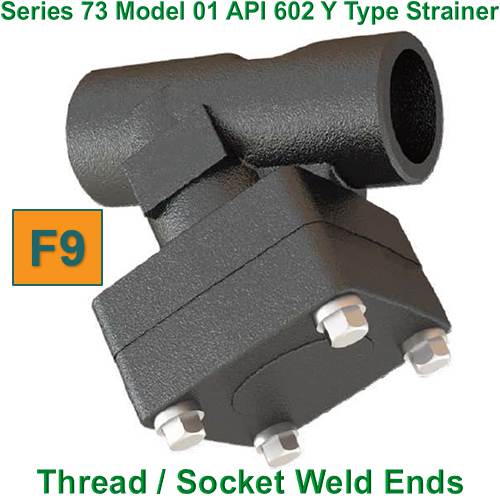

F9 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

F9 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

F9 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

F9 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

F9 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

F9 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

F9 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.

Surface Finishing of F9 Valve:

All F9 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.

Size of F9 Valve:

From 1/4’’ to 48’’ (ANSI Standard F9 Valve);

From DN8 to DN1200 (EN Standard F9 Valve, DIN Standard F9 Valve).

Face to Face of F9 Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard F9 Valve);

Face to Face Acc. to EN 558-1 (EN Standard F9 Valve, DIN Standard F9 Valve).

Pressure Rating of F9 Valve:

ANSI Class 150 F9 Valve (ANSI Standard F9 Valve);

ANSI Class 300 F9 Valve (ANSI Standard F9 Valve);

ANSI Class 600 F9 Valve (ANSI Standard F9 Valve);

ANSI Class 800 F9 Valve (ANSI Standard F9 Valve);

ANSI Class 900 F9 Valve (ANSI Standard F9 Valve);

ANSI Class 1500 F9 Valve (ANSI Standard F9 Valve);

ANSI Class 2500 F9 Valve (ANSI Standard F9 Valve);

EN 1092 PN 16 F9 Valve (EN Standard F9 Valve, DIN Standard F9 Valve);

EN 1092 PN 25 F9 Valve (EN Standard F9 Valve, DIN Standard F9 Valve);

EN 1092 PN 40 F9 Valve (EN Standard F9 Valve, DIN Standard F9 Valve);

EN 1092 PN 63 F9 Valve (EN Standard F9 Valve, DIN Standard F9 Valve);

EN 1092 PN 100 F9 Valve (EN Standard F9 Valve, DIN Standard F9 Valve);

EN 1092 PN 160 F9 Valve (EN Standard F9 Valve, DIN Standard F9 Valve);

EN 1092 PN 250 F9 Valve (EN Standard F9 Valve, DIN Standard F9 Valve);

EN 1092 PN 320 F9 Valve (EN Standard F9 Valve, DIN Standard F9 Valve);

EN 1092 PN 400 F9 Valve (EN Standard F9 Valve, DIN Standard F9 Valve).

Working Temperature of F9 Valve:

Please refer to the "Temperature and Pressure Curve of F9 Valve" for temperature and pressure changes.

Ends Connection of F9 Valve:

ANSI Flange Ends F9 Valve;

ANSI Integral Flange Ends F9 Valve;

ANSI Welded Flange Ends F9 Valve;

Butt Weld (ASME B16.25) Ends F9 Valve;

Butt Weld x ANSI Flange Ends F9 Valve;

EN 1092 Flange Ends F9 Valve;

EN 1092 Integral Flange Ends F9 Valve;

EN 1092 Welded Flange Ends F9 Valve;

Butt Weld (EN 12627) Ends F9 Valve;

Butt Weld (ISO 1127) Ends F9 Valve;

Butt Weld x EN 1092 Flange Ends F9 Valve;

Male NPT (ASME B1.20.1) Ends F9 Valve;

Male BSPP (ISO 228-1) Ends F9 Valve;

Male BSPT (ISO 7-1) Ends F9 Valve;

Male NPT x Female NPT Ends F9 Valve;

Male BSPP x Female BSPP Ends F9 Valve;

Male BSPT x Female BSPT Ends F9 Valve;

Male NPT x Long Butt Weld (+100 mm) Ends F9 Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends F9 Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends F9 Valve;

Female NPT (ASME B1.20.1) Ends F9 Valve;

Female BSPP (ISO 228-1) Ends F9 Valve;

Female BSPT (ISO 7-1) Ends F9 Valve;

Socket Weld (ASME B16.11) Ends F9 Valve;

Socket Weld (EN 12760) Ends F9 Valve;

Female NPT x Socket Weld Ends F9 Valve;

Female BSPP x Socket Weld Ends F9 Valve;

Female BSPT x Socket Weld Ends F9 Valve;

Butt Weld (ASME B16.25) Ends F9 Valve;

Butt Weld (EN 12627) Ends F9 Valve;

Female NPT x Butt Weld Ends F9 Valve;

Female BSPP x Butt Weld Ends F9 Valve;

Female BSPT x Butt Weld Ends F9 Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends F9 Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends F9 Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends F9 Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends F9 Valve.

CE Marking of F9 Valve:

CE Marking is Available to F9 Valve with a Diameter of DN32 or Larger.

Chemical Composition of F9 Valve:

For the Chemical Composition of F9 Valve, please refer to EN 10204 Type 3.1 certificate.

Mechanical Properties of F9 Valve:

For the Mechanical Properties of F9 Valve, please refer to EN 10204 Type 3.1 certificate.

Certificate of F9 Valve:

All F9 Valve will be delivered with EN 10204 Type 3.1 Certificate.

Operation of F9 Valve:

Level Operation of F9 Valve;

Handwheel Operation of F9 Valve;

Pneumatic Actuator Operation of F9 Valve;

Electric Actuator Operation of F9 Valve.

Approvals of F9 Valve:

MSS SP-55 Certified of F9 Valve;

NACE MR 0175 Certified of F9 Valve

API 607 Fire Safe Certified of F9 Valve;

ISO 9001 Certified of F9 Valve;

PED Certified of F9 Valve.

Available Upon Request of F9 Valve:

NACE MR0175 is available upon request of F9 Valve;

ATEX is available upon request of F9 Valve;

TA-LUFT is available upon request of F9 Valve;

SIL is available upon request of F9 Valve;

Degreasing is available upon request of F9 Valve;

Fire Safe is available upon request of F9 Valve;

Stem Extension is available upon request of F9 Valve;

Double Block and Bleed is available upon request of F9 Valve.

Type of EN 1.7386 Valve:

EN 1.7386 Ball Valve;

EN 1.7386 Instrument Ball Valve;

EN 1.7386 Sleeve Plug Valve;

EN 1.7386 Wedge Gate Valve;

EN 1.7386 Globe Valve;

EN 1.7386 Swing Check Valve;

EN 1.7386 Lift Check Valve;

EN 1.7386 Piston Check Valve;

EN 1.7386 Wafer Check Valve;

EN 1.7386 Triple Offset Butterfly Valve;

EN 1.7386 Y Type Strainer;

EN 1.7386 T Type Strainer;

EN 1.7386 Basket Type Strainer;

EN 1.7386 Diaphragm Valve;

EN 1.7386 Spring Loaded Safety Valve.

Design and Test Standard of EN 1.7386 Valve:

EN 1.7386 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 1.7386 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 1.7386 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;

EN 1.7386 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;

EN 1.7386 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;

EN 1.7386 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;

EN 1.7386 Globe Valve Design Acc. to API 602, Test Acc. to API 598;

EN 1.7386 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 1.7386 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 1.7386 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 1.7386 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;

EN 1.7386 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Check Valve Design Acc. to API 602, Test Acc. to API 598;

EN 1.7386 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;

EN 1.7386 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 1.7386 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 1.7386 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 1.7386 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;

EN 1.7386 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;

EN 1.7386 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;

EN 1.7386 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.

Surface Finishing of EN 1.7386 Valve:

All EN 1.7386 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.

Size of EN 1.7386 Valve:

From 1/4’’ to 48’’ (ANSI Standard EN 1.7386 Valve);

From DN8 to DN1200 (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve).

Face to Face of EN 1.7386 Valve:

Face to Face Acc. to ASME B16.10 (ANSI Standard EN 1.7386 Valve);

Face to Face Acc. to EN 558-1 (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve).

Pressure Rating of EN 1.7386 Valve:

ANSI Class 150 EN 1.7386 Valve (ANSI Standard EN 1.7386 Valve);

ANSI Class 300 EN 1.7386 Valve (ANSI Standard EN 1.7386 Valve);

ANSI Class 600 EN 1.7386 Valve (ANSI Standard EN 1.7386 Valve);

ANSI Class 800 EN 1.7386 Valve (ANSI Standard EN 1.7386 Valve);

ANSI Class 900 EN 1.7386 Valve (ANSI Standard EN 1.7386 Valve);

ANSI Class 1500 EN 1.7386 Valve (ANSI Standard EN 1.7386 Valve);

ANSI Class 2500 EN 1.7386 Valve (ANSI Standard EN 1.7386 Valve);

EN 1092 PN 16 EN 1.7386 Valve (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve);

EN 1092 PN 25 EN 1.7386 Valve (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve);

EN 1092 PN 40 EN 1.7386 Valve (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve);

EN 1092 PN 63 EN 1.7386 Valve (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve);

EN 1092 PN 100 EN 1.7386 Valve (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve);

EN 1092 PN 160 EN 1.7386 Valve (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve);

EN 1092 PN 250 EN 1.7386 Valve (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve);

EN 1092 PN 320 EN 1.7386 Valve (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve);

EN 1092 PN 400 EN 1.7386 Valve (EN Standard EN 1.7386 Valve, DIN Standard EN 1.7386 Valve).

Working Temperature of EN 1.7386 Valve:

Please refer to the "Temperature and Pressure Curve of EN 1.7386 Valve" for temperature and pressure changes.

Ends Connection of EN 1.7386 Valve:

ANSI Flange Ends EN 1.7386 Valve;

ANSI Integral Flange Ends EN 1.7386 Valve;

ANSI Welded Flange Ends EN 1.7386 Valve;

Butt Weld (ASME B16.25) Ends EN 1.7386 Valve;

Butt Weld x ANSI Flange Ends EN 1.7386 Valve;

EN 1092 Flange Ends EN 1.7386 Valve;

EN 1092 Integral Flange Ends EN 1.7386 Valve;

EN 1092 Welded Flange Ends EN 1.7386 Valve;

Butt Weld (EN 12627) Ends EN 1.7386 Valve;

Butt Weld (ISO 1127) Ends EN 1.7386 Valve;

Butt Weld x EN 1092 Flange Ends EN 1.7386 Valve;

Male NPT (ASME B1.20.1) Ends EN 1.7386 Valve;

Male BSPP (ISO 228-1) Ends EN 1.7386 Valve;

Male BSPT (ISO 7-1) Ends EN 1.7386 Valve;

Male NPT x Female NPT Ends EN 1.7386 Valve;

Male BSPP x Female BSPP Ends EN 1.7386 Valve;

Male BSPT x Female BSPT Ends EN 1.7386 Valve;

Male NPT x Long Butt Weld (+100 mm) Ends EN 1.7386 Valve;

Male BSPP x Long Butt Weld (+100 mm) Ends EN 1.7386 Valve;

Male BSPT x Long Butt Weld (+100 mm) Ends EN 1.7386 Valve;

Female NPT (ASME B1.20.1) Ends EN 1.7386 Valve;

Female BSPP (ISO 228-1) Ends EN 1.7386 Valve;

Female BSPT (ISO 7-1) Ends EN 1.7386 Valve;

Socket Weld (ASME B16.11) Ends EN 1.7386 Valve;

Socket Weld (EN 12760) Ends EN 1.7386 Valve;

Female NPT x Socket Weld Ends EN 1.7386 Valve;

Female BSPP x Socket Weld Ends EN 1.7386 Valve;

Female BSPT x Socket Weld Ends EN 1.7386 Valve;

Butt Weld (ASME B16.25) Ends EN 1.7386 Valve;

Butt Weld (EN 12627) Ends EN 1.7386 Valve;

Female NPT x Butt Weld Ends EN 1.7386 Valve;

Female BSPP x Butt Weld Ends EN 1.7386 Valve;

Female BSPT x Butt Weld Ends EN 1.7386 Valve;

Female NPT x Long Butt Weld Ends (+100 mm) Ends EN 1.7386 Valve;

Female BSPP x Long Butt Weld Ends (+100 mm) Ends EN 1.7386 Valve;

Female BSPT x Long Butt Weld Ends (+100 mm) Ends EN 1.7386 Valve;

Long Butt Weld Ends (+100 mm Weld Stub) Ends EN 1.7386 Valve.

CE Marking of EN 1.7386 Valve:

CE Marking is Available to EN 1.7386 Valve with a Diameter of DN32 or Larger.

Chemical Composition of EN 1.7386 Valve:

For the Chemical Composition of EN 1.7386 Valve, please refer to EN 10204 Type 3.1 certificate.

Mechanical Properties of EN 1.7386 Valve:

For the Mechanical Properties of EN 1.7386 Valve, please refer to EN 10204 Type 3.1 certificate.

Certificate of EN 1.7386 Valve:

All EN 1.7386 Valve will be delivered with EN 10204 Type 3.1 Certificate.

Operation of EN 1.7386 Valve:

Level Operation of EN 1.7386 Valve;

Handwheel Operation of EN 1.7386 Valve;

Pneumatic Actuator Operation of EN 1.7386 Valve;

Electric Actuator Operation of EN 1.7386 Valve.

Approvals of EN 1.7386 Valve:

MSS SP-55 Certified of EN 1.7386 Valve;

NACE MR 0175 Certified of EN 1.7386 Valve

API 607 Fire Safe Certified of EN 1.7386 Valve;

ISO 9001 Certified of EN 1.7386 Valve;

PED Certified of EN 1.7386 Valve.

Available Upon Request of EN 1.7386 Valve:

NACE MR0175 is available upon request of EN 1.7386 Valve;

ATEX is available upon request of EN 1.7386 Valve;

TA-LUFT is available upon request of EN 1.7386 Valve;

SIL is available upon request of EN 1.7386 Valve;

Degreasing is available upon request of EN 1.7386 Valve;

Fire Safe is available upon request of EN 1.7386 Valve;

Stem Extension is available upon request of EN 1.7386 Valve;

Double Block and Bleed is available upon request of EN 1.7386 Valve.
