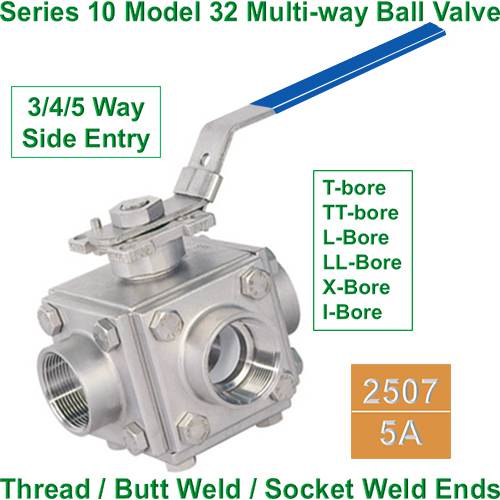

5A Multi Way Ball Valve
5A Three Way Ball Valve
5A Multi Way Ball Valve
5A Sleeve Plug Valve
5A Gate Valve (ANSI)
5A Gate Valve (DIN)
5A Globe Valve (ANSI)
5A Globe Valve (DIN)
5A Check Valve (ANSI)
5A Check Valve (DIN)
5A Wafer Check Valve (Swing)
5A Wafer Check Valve (Lift)

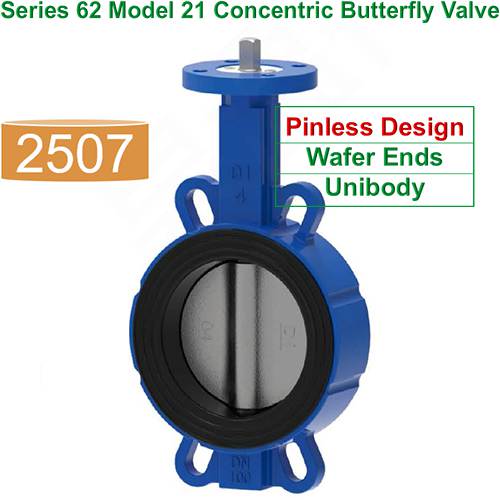

5A Concentric Butterfly Valve
5A Triple Offset Butterfly Valve
5A Y Type Strainer (ANSI)
5A Y Type Strainer (DIN)
5A Basket Type Strainer
5A Spring Loaded Safety Valve
5A Spring Loaded Safety Valve
ASTM A995 5A is a cast version of super duplex stainless steel (corresponding to 2507 forgings) defined by ASTM A995/A995M standards. It combines high strength with high corrosion resistance and is specifically designed for harsh corrosive environments such as those containing chlorine. Freeman Valve's valves in this series fully utilize the material's properties to meet the stringent requirements of various industries.
Freeman Valve leverages its mature manufacturing processes to integrate the superior properties of ASTM A995 Gr. 5A material into its valve products. The core advantages are as follows:
The PREN (pitting equivalent) of ASTM A995 Gr. 5A valves is >40, thanks to the high alloy ratio of 24-26% Cr, 4-5% Mo, and 0.2-0.3% N in the material. This allows for stable resistance to media with high chlorine concentrations exceeding 4% (such as seawater concentrate), and its corrosion resistance is far superior to 316L stainless steel and ordinary duplex stainless steel valves.
Utilizing the material's inherent ferrite-austenite duplex structure and high nitrogen content, it effectively inhibits chloride ion-induced stress corrosion cracking, allowing for stable application in high-temperature, high-chlorine, and high-stress conditions, such as high-pressure sections of seawater desalination and flue gas desulfurization (FGD) slurry systems.
ASTM A995 Gr. 5A valves have a yield strength ≥550MPa and a tensile strength ≥795MPa. This high strength allows for thinner valve body designs, reducing equipment structural weight and optimizing life-cycle costs, resulting in a superior overall cost-performance ratio compared to super austenitic steel valves such as 904L.
suitable for scenarios involving both dynamic loads and corrosive environments, such as valves for circulating pumps on offshore platforms, offering enhanced long-term stability and reducing equipment maintenance frequency.
At temperatures >315°C, ASTM A995 Gr. 4A valves are prone to intermetallic phase precipitation, leading to valve body embrittlement and decreased corrosion resistance. Therefore, they are not suitable for long-term high-temperature operation; the operating temperature range must be strictly controlled during selection.
Based on the material properties of both valve grades and actual operating conditions, Freeman Valve offers the following selection recommendations:
①When the Cl⁻ concentration in the medium is ≤2%, ASTM A995 Gr. 4A valves are preferred, as they meet general corrosion requirements and offer better cost-effectiveness;
②When the Cl⁻ concentration is >2%, or when the operating conditions involve harsh conditions such as high temperature and high stress, ASTM A995 Gr. 5A valves are preferred;
Leveraging the excellent corrosion resistance and high strength of its materials, Freeman Valve's ASTM A995 Gr. 5A valves have been widely used in several harsh and corrosive industries, specifically in the following scenarios:
For use in offshore platform equipment, including heat exchanger tubes, seawater treatment systems, fire/sprinkler systems, and other valve components, adaptable to the high-salt, high-humidity, and high-pressure corrosive environments of the sea;
Used in reactors, heat exchangers, storage tanks, and pipelines, capable of withstanding various corrosive materials such as organic acids, inorganic acids, and chlorine-containing media, ensuring continuous and stable chemical production;
Adaptable to the valve requirements of high-pressure seawater pipes, reverse osmosis unit components, evaporators, condensers, etc., resistant to high-chlorine seawater corrosion, and meeting the stringent requirements of seawater desalination processes;
Mainly used in flue gas desulfurization (FGD) systems, wastewater treatment equipment, slurry circulation pumps/valve, etc., resisting chloride ion and acidic media corrosion, and contributing to environmentally compliant emissions;
Rsed in seawater cooling systems, subsea pipelines, and platform structural components, resistant to long-term seawater erosion and wave impact, ensuring the long-term reliability of marine engineering equipment.

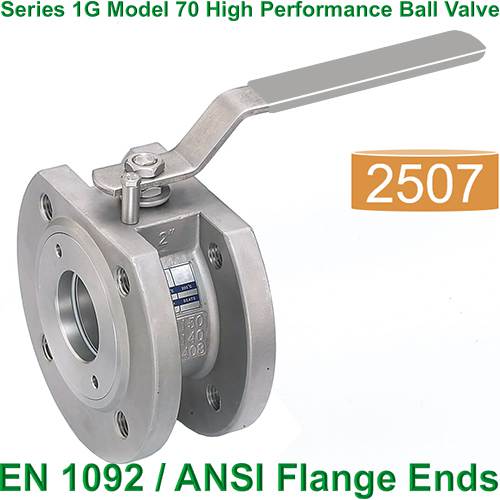

2507 Ball Valve;
2507 Instrument Ball Valve;
2507 Sleeve Plug Valve;
2507 Wedge Gate Valve;
2507 Globe Valve;
2507 Swing Check Valve;
2507 Lift Check Valve;
2507 Piston Check Valve;
2507 Wafer Check Valve;
2507 Triple Offset Butterfly Valve;
2507 Y Type Strainer;
2507 T Type Strainer;
2507 Basket Type Strainer;
2507 Diaphragm Valve;
2507 Spring Loaded Safety Valve.
2507 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
2507 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
2507 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;
2507 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;
2507 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;
2507 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;
2507 Globe Valve Design Acc. to API 602, Test Acc. to API 598;
2507 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
2507 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
2507 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
2507 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
2507 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Check Valve Design Acc. to API 602, Test Acc. to API 598;
2507 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;
2507 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
2507 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
2507 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
2507 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
2507 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
2507 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;
2507 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.
All 2507 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.
From 1/4’’ to 48’’ (ANSI Standard 2507 Valve);
From DN8 to DN1200 (EN Standard 2507 Valve, DIN Standard 2507 Valve).
Face to Face Acc. to ASME B16.10 (ANSI Standard 2507 Valve);
Face to Face Acc. to EN 558-1 (EN Standard 2507 Valve, DIN Standard 2507 Valve).
ANSI Class 150 2507 Valve (ANSI Standard 2507 Valve);
ANSI Class 300 2507 Valve (ANSI Standard 2507 Valve);
ANSI Class 600 2507 Valve (ANSI Standard 2507 Valve);
ANSI Class 800 2507 Valve (ANSI Standard 2507 Valve);
ANSI Class 900 2507 Valve (ANSI Standard 2507 Valve);
ANSI Class 1500 2507 Valve (ANSI Standard 2507 Valve);
ANSI Class 2500 2507 Valve (ANSI Standard 2507 Valve);
EN 1092 PN 16 2507 Valve (EN Standard 2507 Valve, DIN Standard 2507 Valve);
EN 1092 PN 25 2507 Valve (EN Standard 2507 Valve, DIN Standard 2507 Valve);
EN 1092 PN 40 2507 Valve (EN Standard 2507 Valve, DIN Standard 2507 Valve);
EN 1092 PN 63 2507 Valve (EN Standard 2507 Valve, DIN Standard 2507 Valve);
EN 1092 PN 100 2507 Valve (EN Standard 2507 Valve, DIN Standard 2507 Valve);
EN 1092 PN 160 2507 Valve (EN Standard 2507 Valve, DIN Standard 2507 Valve);
EN 1092 PN 250 2507 Valve (EN Standard 2507 Valve, DIN Standard 2507 Valve);
EN 1092 PN 320 2507 Valve (EN Standard 2507 Valve, DIN Standard 2507 Valve);
EN 1092 PN 400 2507 Valve (EN Standard 2507 Valve, DIN Standard 2507 Valve).
Please refer to the "Temperature and Pressure Curve of 2507 Valve" for temperature and pressure changes.
ANSI Flange Ends 2507 Valve;
ANSI Integral Flange Ends 2507 Valve;
ANSI Welded Flange Ends 2507 Valve;
Butt Weld (ASME B16.25) Ends 2507 Valve;
Butt Weld x ANSI Flange Ends 2507 Valve;
EN 1092 Flange Ends 2507 Valve;
EN 1092 Integral Flange Ends 2507 Valve;
EN 1092 Welded Flange Ends 2507 Valve;
Butt Weld (EN 12627) Ends 2507 Valve;
Butt Weld (ISO 1127) Ends 2507 Valve;
Butt Weld x EN 1092 Flange Ends 2507 Valve;
Male NPT (ASME B1.20.1) Ends 2507 Valve;
Male BSPP (ISO 228-1) Ends 2507 Valve;
Male BSPT (ISO 7-1) Ends 2507 Valve;
Male NPT x Female NPT Ends 2507 Valve;
Male BSPP x Female BSPP Ends 2507 Valve;
Male BSPT x Female BSPT Ends 2507 Valve;
Male NPT x Long Butt Weld (+100 mm) Ends 2507 Valve;
Male BSPP x Long Butt Weld (+100 mm) Ends 2507 Valve;
Male BSPT x Long Butt Weld (+100 mm) Ends 2507 Valve;
Female NPT (ASME B1.20.1) Ends 2507 Valve;
Female BSPP (ISO 228-1) Ends 2507 Valve;
Female BSPT (ISO 7-1) Ends 2507 Valve;
Socket Weld (ASME B16.11) Ends 2507 Valve;
Socket Weld (EN 12760) Ends 2507 Valve;
Female NPT x Socket Weld Ends 2507 Valve;
Female BSPP x Socket Weld Ends 2507 Valve;
Female BSPT x Socket Weld Ends 2507 Valve;
Butt Weld (ASME B16.25) Ends 2507 Valve;
Butt Weld (EN 12627) Ends 2507 Valve;
Female NPT x Butt Weld Ends 2507 Valve;
Female BSPP x Butt Weld Ends 2507 Valve;
Female BSPT x Butt Weld Ends 2507 Valve;
Female NPT x Long Butt Weld Ends (+100 mm) Ends 2507 Valve;
Female BSPP x Long Butt Weld Ends (+100 mm) Ends 2507 Valve;
Female BSPT x Long Butt Weld Ends (+100 mm) Ends 2507 Valve;
Long Butt Weld Ends (+100 mm Weld Stub) Ends 2507 Valve.
CE Marking is Available to 2507 Valve with a Diameter of DN32 or Larger.
For the Chemical Composition of 2507 Valve, please refer to EN 10204 Type 3.1 certificate.
For the Mechanical Properties of 2507 Valve, please refer to EN 10204 Type 3.1 certificate.
All 2507 Valve will be delivered with EN 10204 Type 3.1 Certificate.
Level Operation of 2507 Valve;
Handwheel Operation of 2507 Valve;
Pneumatic Actuator Operation of 2507 Valve;
Electric Actuator Operation of 2507 Valve.
MSS SP-55 Certified of 2507 Valve;
NACE MR 0175 Certified of 2507 Valve
API 607 Fire Safe Certified of 2507 Valve;
ISO 9001 Certified of 2507 Valve;
PED Certified of 2507 Valve.
NACE MR0175 is available upon request of 2507 Valve;
ATEX is available upon request of 2507 Valve;
TA-LUFT is available upon request of 2507 Valve;
SIL is available upon request of 2507 Valve;
Degreasing is available upon request of 2507 Valve;
Fire Safe is available upon request of 2507 Valve;
Stem Extension is available upon request of 2507 Valve;
Double Block and Bleed is available upon request of 2507 Valve.

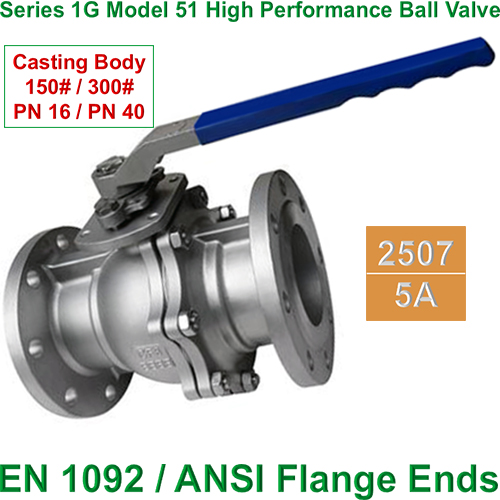

5A Ball Valve;
5A Instrument Ball Valve;
5A Sleeve Plug Valve;
5A Wedge Gate Valve;
5A Globe Valve;
5A Swing Check Valve;
5A Lift Check Valve;
5A Piston Check Valve;
5A Wafer Check Valve;
5A Triple Offset Butterfly Valve;
5A Y Type Strainer;
5A T Type Strainer;

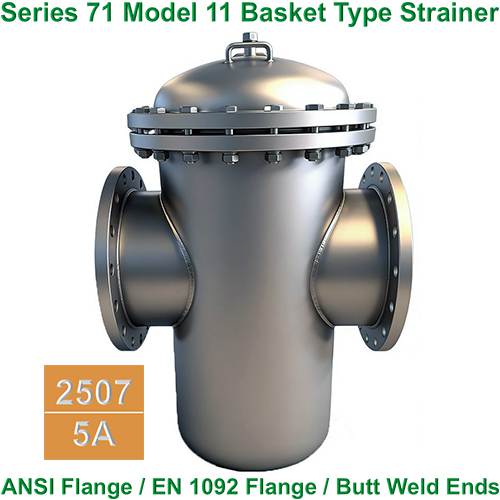

5A Basket Type Strainer;
5A Diaphragm Valve;

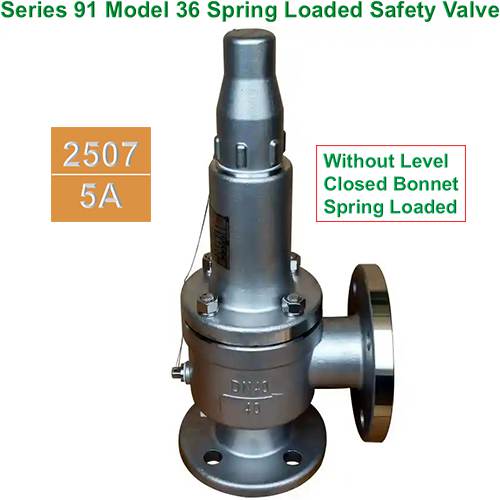

5A Spring Loaded Safety Valve.
5A High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
5A High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
5A Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;
5A Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;
5A Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;
5A Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;
5A Globe Valve Design Acc. to API 602, Test Acc. to API 598;
5A Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
5A Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
5A Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
5A Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
5A Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Check Valve Design Acc. to API 602, Test Acc. to API 598;
5A Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;
5A Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
5A Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
5A T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
5A Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
5A Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
5A Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;
5A Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.
All 5A Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.
From 1/4’’ to 48’’ (ANSI Standard 5A Valve);
From DN8 to DN1200 (EN Standard 5A Valve, DIN Standard 5A Valve).
Face to Face Acc. to ASME B16.10 (ANSI Standard 5A Valve);
Face to Face Acc. to EN 558-1 (EN Standard 5A Valve, DIN Standard 5A Valve).
ANSI Class 150 5A Valve (ANSI Standard 5A Valve);
ANSI Class 300 5A Valve (ANSI Standard 5A Valve);
ANSI Class 600 5A Valve (ANSI Standard 5A Valve);
ANSI Class 800 5A Valve (ANSI Standard 5A Valve);
ANSI Class 900 5A Valve (ANSI Standard 5A Valve);
ANSI Class 1500 5A Valve (ANSI Standard 5A Valve);
ANSI Class 2500 5A Valve (ANSI Standard 5A Valve);
EN 1092 PN 16 5A Valve (EN Standard 5A Valve, DIN Standard 5A Valve);
EN 1092 PN 25 5A Valve (EN Standard 5A Valve, DIN Standard 5A Valve);
EN 1092 PN 40 5A Valve (EN Standard 5A Valve, DIN Standard 5A Valve);
EN 1092 PN 63 5A Valve (EN Standard 5A Valve, DIN Standard 5A Valve);
EN 1092 PN 100 5A Valve (EN Standard 5A Valve, DIN Standard 5A Valve);
EN 1092 PN 160 5A Valve (EN Standard 5A Valve, DIN Standard 5A Valve);
EN 1092 PN 250 5A Valve (EN Standard 5A Valve, DIN Standard 5A Valve);
EN 1092 PN 320 5A Valve (EN Standard 5A Valve, DIN Standard 5A Valve);
EN 1092 PN 400 5A Valve (EN Standard 5A Valve, DIN Standard 5A Valve).
Please refer to the "Temperature and Pressure Curve of 5A Valve" for temperature and pressure changes.
ANSI Flange Ends 5A Valve;
ANSI Integral Flange Ends 5A Valve;
ANSI Welded Flange Ends 5A Valve;
Butt Weld (ASME B16.25) Ends 5A Valve;
Butt Weld x ANSI Flange Ends 5A Valve;
EN 1092 Flange Ends 5A Valve;
EN 1092 Integral Flange Ends 5A Valve;
EN 1092 Welded Flange Ends 5A Valve;
Butt Weld (EN 12627) Ends 5A Valve;
Butt Weld (ISO 1127) Ends 5A Valve;
Butt Weld x EN 1092 Flange Ends 5A Valve;
Male NPT (ASME B1.20.1) Ends 5A Valve;
Male BSPP (ISO 228-1) Ends 5A Valve;
Male BSPT (ISO 7-1) Ends 5A Valve;
Male NPT x Female NPT Ends 5A Valve;
Male BSPP x Female BSPP Ends 5A Valve;
Male BSPT x Female BSPT Ends 5A Valve;
Male NPT x Long Butt Weld (+100 mm) Ends 5A Valve;
Male BSPP x Long Butt Weld (+100 mm) Ends 5A Valve;
Male BSPT x Long Butt Weld (+100 mm) Ends 5A Valve;
Female NPT (ASME B1.20.1) Ends 5A Valve;
Female BSPP (ISO 228-1) Ends 5A Valve;
Female BSPT (ISO 7-1) Ends 5A Valve;
Socket Weld (ASME B16.11) Ends 5A Valve;
Socket Weld (EN 12760) Ends 5A Valve;
Female NPT x Socket Weld Ends 5A Valve;
Female BSPP x Socket Weld Ends 5A Valve;
Female BSPT x Socket Weld Ends 5A Valve;
Butt Weld (ASME B16.25) Ends 5A Valve;
Butt Weld (EN 12627) Ends 5A Valve;
Female NPT x Butt Weld Ends 5A Valve;
Female BSPP x Butt Weld Ends 5A Valve;
Female BSPT x Butt Weld Ends 5A Valve;
Female NPT x Long Butt Weld Ends (+100 mm) Ends 5A Valve;
Female BSPP x Long Butt Weld Ends (+100 mm) Ends 5A Valve;
Female BSPT x Long Butt Weld Ends (+100 mm) Ends 5A Valve;
Long Butt Weld Ends (+100 mm Weld Stub) Ends 5A Valve.
CE Marking is Available to 5A Valve with a Diameter of DN32 or Larger.
For the Chemical Composition of 5A Valve, please refer to EN 10204 Type 3.1 certificate.
For the Mechanical Properties of 5A Valve, please refer to EN 10204 Type 3.1 certificate.
All 5A Valve will be delivered with EN 10204 Type 3.1 Certificate.
Level Operation of 5A Valve;
Handwheel Operation of 5A Valve;
Pneumatic Actuator Operation of 5A Valve;
Electric Actuator Operation of 5A Valve.
MSS SP-55 Certified of 5A Valve;
NACE MR 0175 Certified of 5A Valve
API 607 Fire Safe Certified of 5A Valve;
ISO 9001 Certified of 5A Valve;
PED Certified of 5A Valve.
NACE MR0175 is available upon request of 5A Valve;
ATEX is available upon request of 5A Valve;
TA-LUFT is available upon request of 5A Valve;
SIL is available upon request of 5A Valve;
Degreasing is available upon request of 5A Valve;
Fire Safe is available upon request of 5A Valve;
Stem Extension is available upon request of 5A Valve;
Double Block and Bleed is available upon request of 5A Valve.
32750 Ball Valve;
32750 Instrument Ball Valve;
32750 Sleeve Plug Valve;
32750 Wedge Gate Valve;
32750 Globe Valve;
32750 Swing Check Valve;
32750 Lift Check Valve;
32750 Piston Check Valve;
32750 Wafer Check Valve;
32750 Triple Offset Butterfly Valve;
32750 Y Type Strainer;
32750 T Type Strainer;
32750 Basket Type Strainer;
32750 Diaphragm Valve;
32750 Spring Loaded Safety Valve.
32750 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
32750 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
32750 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;
32750 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;
32750 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;
32750 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;
32750 Globe Valve Design Acc. to API 602, Test Acc. to API 598;
32750 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
32750 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
32750 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
32750 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
32750 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Check Valve Design Acc. to API 602, Test Acc. to API 598;
32750 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;
32750 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
32750 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
32750 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
32750 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
32750 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
32750 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;
32750 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.
All 32750 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.
From 1/4’’ to 48’’ (ANSI Standard 32750 Valve);
From DN8 to DN1200 (EN Standard 32750 Valve, DIN Standard 32750 Valve).
Face to Face Acc. to ASME B16.10 (ANSI Standard 32750 Valve);
Face to Face Acc. to EN 558-1 (EN Standard 32750 Valve, DIN Standard 32750 Valve).
ANSI Class 150 32750 Valve (ANSI Standard 32750 Valve);
ANSI Class 300 32750 Valve (ANSI Standard 32750 Valve);
ANSI Class 600 32750 Valve (ANSI Standard 32750 Valve);
ANSI Class 800 32750 Valve (ANSI Standard 32750 Valve);
ANSI Class 900 32750 Valve (ANSI Standard 32750 Valve);
ANSI Class 1500 32750 Valve (ANSI Standard 32750 Valve);
ANSI Class 2500 32750 Valve (ANSI Standard 32750 Valve);
EN 1092 PN 16 32750 Valve (EN Standard 32750 Valve, DIN Standard 32750 Valve);
EN 1092 PN 25 32750 Valve (EN Standard 32750 Valve, DIN Standard 32750 Valve);
EN 1092 PN 40 32750 Valve (EN Standard 32750 Valve, DIN Standard 32750 Valve);
EN 1092 PN 63 32750 Valve (EN Standard 32750 Valve, DIN Standard 32750 Valve);
EN 1092 PN 100 32750 Valve (EN Standard 32750 Valve, DIN Standard 32750 Valve);
EN 1092 PN 160 32750 Valve (EN Standard 32750 Valve, DIN Standard 32750 Valve);
EN 1092 PN 250 32750 Valve (EN Standard 32750 Valve, DIN Standard 32750 Valve);
EN 1092 PN 320 32750 Valve (EN Standard 32750 Valve, DIN Standard 32750 Valve);
EN 1092 PN 400 32750 Valve (EN Standard 32750 Valve, DIN Standard 32750 Valve).
Please refer to the "Temperature and Pressure Curve of 32750 Valve" for temperature and pressure changes.
ANSI Flange Ends 32750 Valve;
ANSI Integral Flange Ends 32750 Valve;
ANSI Welded Flange Ends 32750 Valve;
Butt Weld (ASME B16.25) Ends 32750 Valve;
Butt Weld x ANSI Flange Ends 32750 Valve;
EN 1092 Flange Ends 32750 Valve;
EN 1092 Integral Flange Ends 32750 Valve;
EN 1092 Welded Flange Ends 32750 Valve;
Butt Weld (EN 12627) Ends 32750 Valve;
Butt Weld (ISO 1127) Ends 32750 Valve;
Butt Weld x EN 1092 Flange Ends 32750 Valve;
Male NPT (ASME B1.20.1) Ends 32750 Valve;
Male BSPP (ISO 228-1) Ends 32750 Valve;
Male BSPT (ISO 7-1) Ends 32750 Valve;
Male NPT x Female NPT Ends 32750 Valve;
Male BSPP x Female BSPP Ends 32750 Valve;
Male BSPT x Female BSPT Ends 32750 Valve;
Male NPT x Long Butt Weld (+100 mm) Ends 32750 Valve;
Male BSPP x Long Butt Weld (+100 mm) Ends 32750 Valve;
Male BSPT x Long Butt Weld (+100 mm) Ends 32750 Valve;
Female NPT (ASME B1.20.1) Ends 32750 Valve;
Female BSPP (ISO 228-1) Ends 32750 Valve;
Female BSPT (ISO 7-1) Ends 32750 Valve;
Socket Weld (ASME B16.11) Ends 32750 Valve;
Socket Weld (EN 12760) Ends 32750 Valve;
Female NPT x Socket Weld Ends 32750 Valve;
Female BSPP x Socket Weld Ends 32750 Valve;
Female BSPT x Socket Weld Ends 32750 Valve;
Butt Weld (ASME B16.25) Ends 32750 Valve;
Butt Weld (EN 12627) Ends 32750 Valve;
Female NPT x Butt Weld Ends 32750 Valve;
Female BSPP x Butt Weld Ends 32750 Valve;
Female BSPT x Butt Weld Ends 32750 Valve;
Female NPT x Long Butt Weld Ends (+100 mm) Ends 32750 Valve;
Female BSPP x Long Butt Weld Ends (+100 mm) Ends 32750 Valve;
Female BSPT x Long Butt Weld Ends (+100 mm) Ends 32750 Valve;
Long Butt Weld Ends (+100 mm Weld Stub) Ends 32750 Valve.
CE Marking is Available to 32750 Valve with a Diameter of DN32 or Larger.
For the Chemical Composition of 32750 Valve, please refer to EN 10204 Type 3.1 certificate.
For the Mechanical Properties of 32750 Valve, please refer to EN 10204 Type 3.1 certificate.
All 32750 Valve will be delivered with EN 10204 Type 3.1 Certificate.
Level Operation of 32750 Valve;
Handwheel Operation of 32750 Valve;
Pneumatic Actuator Operation of 32750 Valve;
Electric Actuator Operation of 32750 Valve.
MSS SP-55 Certified of 32750 Valve;
NACE MR 0175 Certified of 32750 Valve
API 607 Fire Safe Certified of 32750 Valve;
ISO 9001 Certified of 32750 Valve;
PED Certified of 32750 Valve.
NACE MR0175 is available upon request of 32750 Valve;
ATEX is available upon request of 32750 Valve;
TA-LUFT is available upon request of 32750 Valve;
SIL is available upon request of 32750 Valve;
Degreasing is available upon request of 32750 Valve;
Fire Safe is available upon request of 32750 Valve;
Stem Extension is available upon request of 32750 Valve;
Double Block and Bleed is available upon request of 32750 Valve.
EN 1.4410 Ball Valve;
EN 1.4410 Instrument Ball Valve;
EN 1.4410 Sleeve Plug Valve;
EN 1.4410 Wedge Gate Valve;
EN 1.4410 Globe Valve;
EN 1.4410 Swing Check Valve;
EN 1.4410 Lift Check Valve;
EN 1.4410 Piston Check Valve;
EN 1.4410 Wafer Check Valve;
EN 1.4410 Triple Offset Butterfly Valve;
EN 1.4410 Y Type Strainer;
EN 1.4410 T Type Strainer;
EN 1.4410 Basket Type Strainer;
EN 1.4410 Diaphragm Valve;
EN 1.4410 Spring Loaded Safety Valve.
EN 1.4410 High Performance Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
EN 1.4410 High Performance Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Instrument Ball Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
EN 1.4410 Instrument Ball Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Sleeve Plug Valve Design Acc. to API 599 & ASME B16.34, Test Acc. to API 598;
EN 1.4410 Wedge Gate Valve Design Acc. to API 603 & ASME B16.34, Test Acc. to API 598;
EN 1.4410 Wedge Gate Valve Design Acc. to API 602, Test Acc. to API 598;
EN 1.4410 Wedge Gate Valve Design Acc. to EN 1984 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Globe Valve Design Acc. to BS 1873 & ASME B16.34, Test Acc. to API 598;
EN 1.4410 Globe Valve Design Acc. to API 602, Test Acc. to API 598;
EN 1.4410 Globe Valve Design Acc. to EN 13709 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Swing Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
EN 1.4410 Swing Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Lift Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
EN 1.4410 Lift Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Piston Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
EN 1.4410 Piston Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Wafer Check Valve Design Acc. to API 594 & ASME B16.34, Test Acc. to API 598;
EN 1.4410 Wafer Check Valve Design Acc. to EN 16767 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Check Valve Design Acc. to API 602, Test Acc. to API 598;
EN 1.4410 Triple Offset Butterfly Valve Design Acc. to API 609 & ASME B16.34, Test Acc. to API 598;
EN 1.4410 Triple Offset Butterfly Valve Design Acc. to EN 593 & EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Y Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
EN 1.4410 Y Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 T Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
EN 1.4410 T Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Basket Type Strainer Design Acc. to ASME B16.34, Test Acc. to API 598;
EN 1.4410 Basket Type Strainer Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Diaphragm Valve Design Acc. to ASME B16.34, Test Acc. to API 598;
EN 1.4410 Diaphragm Valve Design Acc. to EN 12516-1/2, Test Acc. to EN 12266-1/2;
EN 1.4410 Spring Loaded Safety Valve Design Acc. to API 520 & API 526, Test Acc. to API 527;
EN 1.4410 Spring Loaded Safety Valve Design Acc. to ISO 4126, Test Acc. to ISO 4126.
All EN 1.4410 Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.
From 1/4’’ to 48’’ (ANSI Standard EN 1.4410 Valve);
From DN8 to DN1200 (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve).
Face to Face Acc. to ASME B16.10 (ANSI Standard EN 1.4410 Valve);
Face to Face Acc. to EN 558-1 (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve).
ANSI Class 150 EN 1.4410 Valve (ANSI Standard EN 1.4410 Valve);
ANSI Class 300 EN 1.4410 Valve (ANSI Standard EN 1.4410 Valve);
ANSI Class 600 EN 1.4410 Valve (ANSI Standard EN 1.4410 Valve);
ANSI Class 800 EN 1.4410 Valve (ANSI Standard EN 1.4410 Valve);
ANSI Class 900 EN 1.4410 Valve (ANSI Standard EN 1.4410 Valve);
ANSI Class 1500 EN 1.4410 Valve (ANSI Standard EN 1.4410 Valve);
ANSI Class 2500 EN 1.4410 Valve (ANSI Standard EN 1.4410 Valve);
EN 1092 PN 16 EN 1.4410 Valve (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve);
EN 1092 PN 25 EN 1.4410 Valve (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve);
EN 1092 PN 40 EN 1.4410 Valve (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve);
EN 1092 PN 63 EN 1.4410 Valve (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve);
EN 1092 PN 100 EN 1.4410 Valve (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve);
EN 1092 PN 160 EN 1.4410 Valve (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve);
EN 1092 PN 250 EN 1.4410 Valve (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve);
EN 1092 PN 320 EN 1.4410 Valve (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve);
EN 1092 PN 400 EN 1.4410 Valve (EN Standard EN 1.4410 Valve, DIN Standard EN 1.4410 Valve).
Please refer to the "Temperature and Pressure Curve of EN 1.4410 Valve" for temperature and pressure changes.
ANSI Flange Ends EN 1.4410 Valve;
ANSI Integral Flange Ends EN 1.4410 Valve;
ANSI Welded Flange Ends EN 1.4410 Valve;
Butt Weld (ASME B16.25) Ends EN 1.4410 Valve;
Butt Weld x ANSI Flange Ends EN 1.4410 Valve;
EN 1092 Flange Ends EN 1.4410 Valve;
EN 1092 Integral Flange Ends EN 1.4410 Valve;
EN 1092 Welded Flange Ends EN 1.4410 Valve;
Butt Weld (EN 12627) Ends EN 1.4410 Valve;
Butt Weld (ISO 1127) Ends EN 1.4410 Valve;
Butt Weld x EN 1092 Flange Ends EN 1.4410 Valve;
Male NPT (ASME B1.20.1) Ends EN 1.4410 Valve;
Male BSPP (ISO 228-1) Ends EN 1.4410 Valve;
Male BSPT (ISO 7-1) Ends EN 1.4410 Valve;
Male NPT x Female NPT Ends EN 1.4410 Valve;
Male BSPP x Female BSPP Ends EN 1.4410 Valve;
Male BSPT x Female BSPT Ends EN 1.4410 Valve;
Male NPT x Long Butt Weld (+100 mm) Ends EN 1.4410 Valve;
Male BSPP x Long Butt Weld (+100 mm) Ends EN 1.4410 Valve;
Male BSPT x Long Butt Weld (+100 mm) Ends EN 1.4410 Valve;
Female NPT (ASME B1.20.1) Ends EN 1.4410 Valve;
Female BSPP (ISO 228-1) Ends EN 1.4410 Valve;
Female BSPT (ISO 7-1) Ends EN 1.4410 Valve;
Socket Weld (ASME B16.11) Ends EN 1.4410 Valve;
Socket Weld (EN 12760) Ends EN 1.4410 Valve;
Female NPT x Socket Weld Ends EN 1.4410 Valve;
Female BSPP x Socket Weld Ends EN 1.4410 Valve;
Female BSPT x Socket Weld Ends EN 1.4410 Valve;
Butt Weld (ASME B16.25) Ends EN 1.4410 Valve;
Butt Weld (EN 12627) Ends EN 1.4410 Valve;
Female NPT x Butt Weld Ends EN 1.4410 Valve;
Female BSPP x Butt Weld Ends EN 1.4410 Valve;
Female BSPT x Butt Weld Ends EN 1.4410 Valve;
Female NPT x Long Butt Weld Ends (+100 mm) Ends EN 1.4410 Valve;
Female BSPP x Long Butt Weld Ends (+100 mm) Ends EN 1.4410 Valve;
Female BSPT x Long Butt Weld Ends (+100 mm) Ends EN 1.4410 Valve;
Long Butt Weld Ends (+100 mm Weld Stub) Ends EN 1.4410 Valve.
CE Marking is Available to EN 1.4410 Valve with a Diameter of DN32 or Larger.
For the Chemical Composition of EN 1.4410 Valve, please refer to EN 10204 Type 3.1 certificate.
For the Mechanical Properties of EN 1.4410 Valve, please refer to EN 10204 Type 3.1 certificate.
All EN 1.4410 Valve will be delivered with EN 10204 Type 3.1 Certificate.
Level Operation of EN 1.4410 Valve;
Handwheel Operation of EN 1.4410 Valve;
Pneumatic Actuator Operation of EN 1.4410 Valve;
Electric Actuator Operation of EN 1.4410 Valve.
MSS SP-55 Certified of EN 1.4410 Valve;
NACE MR 0175 Certified of EN 1.4410 Valve
API 607 Fire Safe Certified of EN 1.4410 Valve;
ISO 9001 Certified of EN 1.4410 Valve;
PED Certified of EN 1.4410 Valve.
NACE MR0175 is available upon request of EN 1.4410 Valve;
ATEX is available upon request of EN 1.4410 Valve;
TA-LUFT is available upon request of EN 1.4410 Valve;
SIL is available upon request of EN 1.4410 Valve;
Degreasing is available upon request of EN 1.4410 Valve;
Fire Safe is available upon request of EN 1.4410 Valve;
Stem Extension is available upon request of EN 1.4410 Valve;
Double Block and Bleed is available upon request of EN 1.4410 Valve.
