Performance, Precautions, and Differences from Freeman Valve's ASTM A182 F51 bellow gate valve

ASTM A182 F51, a forged version of 2205 duplex stainless steel, is an ideal bellow gate valve material for chloride-containing environments due to its excellent resistance to chloride ion corrosion. The following focuses on the core advantages and usage precautions of this model of bellow gate valve manufactured by Freeman Valve.

1. Core Advantages of Freeman Valve's ASTM A182 F51 bellow gate valve in Resisting Chloride Ion Corrosion

1.1 Excellent Resistance to Chloride Stress Corrosion Cracking (SCC)

This is the most crucial advantage of this bellow gate valve model and the key reason why it replaces traditional F316L bellow gate valve. Mechanistically, ASTM A182 F51 employs a ferrite (F) + austenite (A) duplex microstructure, completely breaking the SCC sensitivity mechanism of pure austenitic stainless steel under the coupling effect of "chloride ions + tensile stress." The ferrite phase effectively inhibits crack propagation, significantly improving the bellow gate valve's SCC threshold.

In practical applications, this bellow gate valve exhibits significantly superior corrosion resistance compared to austenitic stainless-steel castings such as F304 and F316L in typical SCC environments, including seawater, brine, and chlorinated process media. It can maintain stable operation for extended periods under conditions where traditional austenitic stainless-steel bellow gate valve frequently fail, greatly improving equipment reliability.

1.2 Excellent Resistance to Pitting and Crevice Corrosion

This advantage stems from its well-designed alloy composition: ASTM A182 F51 contains approximately 22% chromium (Cr), 3% molybdenum (Mo), and 0.10–0.30% nitrogen (N), achieving a pitting corrosion resistance equivalent (PREN) of 32–38, far exceeding that of F316L (PREN≈25).

The synergistic effect of Mo and N is particularly crucial, giving it extremely strong resistance to pitting and crevice corrosion in neutral and weakly acidic media containing chloride ions (such as seawater and chloride solutions). Especially suitable for complex casting structures with gaps, easily deposited media, and localized stagnation in bellow gate valve internal flow channels and flange sealing surfaces, reducing the risk of localized corrosion failure at its source.

1.3 Excellent Resistance to Uniform Corrosion

In neutral, weakly alkaline, and weakly acidic environments containing chloride ions, the high Cr content in ASTM A182 F51 bellow gate valve forms a stable passivation film with an extremely low overall uniform corrosion rate, far superior to ordinary carbon steel and low-alloy cast iron bellow gate valve. This effectively resists the overall erosion of the bellow gate valve body by chloride ions, extending the bellow gate valve's service life.

2. Precautions for Using ASTM A182 F51 bellow gate valve

2.1 Temperature Limits

The recommended long-term operating temperature for this bellow gate valve is ≤300℃. Exceeding this temperature will significantly reduce the stability of its duplex structure, accelerate the precipitation of intermetallic phases, and significantly deteriorate its resistance to chloride ion corrosion. Especially under the combined conditions of "high temperature + high chloride," its corrosion resistance is far inferior to that of super duplex steel castings (such as ASTM A995 5A/6A) or nickel-based alloys, requiring material upgrades based on the operating conditions.

2.2 Concentration/Pressure Limitations

Use in extreme corrosive conditions should be avoided: Environments with extremely high concentrations of chloride ions, high temperature and pressure, or strong acidic chlorides (such as high-temperature concentrated hydrochloric acid, high-chlorine and high-pressure oil and gas) should be avoided. ASTM A182 F51 bellow gate valve have insufficient resistance to pitting corrosion and SCC, and are prone to rapid corrosion failure. Appropriate selection based on operating conditions is necessary.

3. Core Differences Between ASTM A182 F51 bellow gate valve and ASTM A995 Gr. 4A bellow gate valve

Both belong to the 2205 duplex stainless steel system. The core difference lies only in the manufacturing process and corresponding standards, as follows:

• ASTM A995 Gr. 4A: Follows the ASTM A995 standard and is a cast version of 2205 duplex stainless steel, mainly used for bellow gate valve components with complex structures (such as bellow gate valve bodies and covers).

• ASTM A182 F51: Follows the ASTM A182 standard and is a forged version of 2205 duplex stainless steel, emphasizing high strength and consistent performance. It is mostly used for bellow gate valve forgings with higher mechanical performance requirements.

Compact Ball Valve, Wafer Ball Valve, Shut Off Valve

Main Features of Compact Ball Valve:

★Investment Casting Body;

★Anti-Blowout Proof Stem;

★Floating Ball;

★Soft Seats;

★Compact Design.

Design Standard of Compact Ball Valve:

★Design Acc. to ASME B16.34 & API 608 (ANSI Standard);

★Design Acc. to EN-12516-1/2 (DIN Standard, EN Standard).

Test Standard of Compact Ball Valve:

★Test Acc. to API 598 (ANSI Standard);

★Test Acc. to EN 12266-1/2 (DIN Standard, EN Standard).

Surface Finishing of Compact Ball Valve:

★All Compact Ball Valve surface is finely machined to achieve the required roughness and conforms to standard MSS SP-55.

Size of Compact Ball Valve:

★From 1/2’’ to 12’’ (ANSI Standard);

★From DN15 to DN300 (DIN Standard, EN Standard).

Face to Face of Compact Ball Valve:

★Face to Face Acc. to Manufacturer’s Standard.

Pressure Rating of Compact Ball Valve:

★ANSI Class 150 (ANSI Standard);

★EN 1092 PN 16, (DIN Standard, EN Standard).

Available Material of Compact Ball Valve:

★Carbon Steel WCB (EN 1.0619) Compact Ball Valve;

★Carbon Steel WCC Compact Ball Valve;

★Carbon Steel LCB Compact Ball Valve;

★Carbon Steel LCC Compact Ball Valve;

★Alloy Steel LC3 Compact Ball Valve;

★Alloy Steel C5 (EN 1.7362) Compact Ball Valve;

★Alloy Steel C12 Compact Ball Valve;

★Alloy Steel WC6 (EN 1.7357) Compact Ball Valve;

★Alloy Steel WC9 (EN 1.7379) Compact Ball Valve;

★Alloy Steel C12A (EN 1.4903) Compact Ball Valve;

★Stainless Steel CF8 (EN 1.4308) Compact Ball Valve;

★Stainless Steel CF8M (EN 1.4408) Compact Ball Valve;

★Stainless Steel CF3 (EN 1.4309) Compact Ball Valve;

★Stainless Steel CF3M (EN 1.4409) Compact Ball Valve;

★Stainless Steel CG8M (EN 1.4449) Compact Ball Valve;

★Stainless Steel CK3MCuN (EN 1.4547) Compact Ball Valve;

★Stainless Steel CN7M (2.4066) Compact Ball Valve;

★Stainless Steel 316Ti (EN 1.4571) Compact Ball Valve;

★Stainless Steel 321 (EN 1.4541) Compact Ball Valve;

★Stainless Steel 347 (EN 1.4550) Compact Ball Valve;

★Stainless Steel 347H (EN 1.4912) Compact Ball Valve;

★Stainless Steel 904L (EN 1.4539) Compact Ball Valve;

★Stainless Steel 310MoLN (EN 1.4466) Compact Ball Valve;

★UNS S38815 (ZeCor-Z / ZeCor-310M) Compact Ball Valve;

★ASTM A351 CD4MCu Compact Ball Valve;

★Duplex Steel A995 Gr. 4A (EN 1.4462) Compact Ball Valve;

★Duplex Steel A995 Gr. 5A (EN 1.4410) Compact Ball Valve;

★Duplex Steel A995 Gr. 6A (EN 1.4501) Compact Ball Valve;

★Nickel 200 (EN 2.4066) Compact Ball Valve;

★Nickel 201 (EN 2.4068) Compact Ball Valve;

★Incoloy 800 (EN 1.4876) Compact Ball Valve;

★Incoloy 800H (EN 1.4958) Compact Ball Valve;

★Incoloy 825 (EN 2.4858) Compact Ball Valve;

★Inconel 600 (EN 2.4816) Compact Ball Valve;

★Inconel 625 (EN 2.4856) Compact Ball Valve;

★Inconel 718 (EN 2.4668) Compact Ball Valve;

★Monel 400 (EN 2.4360) Compact Ball Valve;

★Monel K500 (EN 2.4375) Compact Ball Valve;

★Titanium Gr. 2 (EN 3.7035) Compact Ball Valve;

★Titanium Gr. 3 (EN 3.7055) Compact Ball Valve;

★Titanium Gr. 10 Compact Ball Valve;

★Hastelloy C276 (2.4819) Compact Ball Valve;

★Hastelloy B3 (EN 2.4600) Compact Ball Valve;

★Hastelloy C22 (EN 2.4602) Compact Ball Valve;

★Hastelloy C4 (EN 2.4610) Compact Ball Valve;

★Nickel Aluminum Bronze C95500 Compact Ball Valve;

★Nickel Aluminum Bronze C95800 Compact Ball Valve;

★Nickel Aluminum Bronze C63000 Compact Ball Valve.

Working Temperature of Compact Ball Valve:

★Please refer to the "Temperature and Pressure Curve of Compact Ball Valve" for temperature and pressure changes.

Ends Connection of Compact Ball Valve:

★Wafer Acc. to ANSI Class 150;

★Wafer Acc. to EN 1092 PN16.

Surface Coating of Compact Ball Valve:

★C1 (ISO 12944:2018), Very Low Corrosivity;

★C2 (ISO 12944:2018), Low Corrosivity;

★C3 (ISO 12944:2018), Medium Corrosivity;

★C4 (ISO 12944:2018), High Corrosivity;

★C5 (ISO 12944:2018), Very High Corrosivity;

★CX (ISO 12944:2018), Extreme Corrosivity;

★IM1 (ISO 12944:2018), Fresh Water;

★IM2 (ISO 12944:2018), Sea Water, Brackish Water;

★IM3 (ISO 12944:2018), Soil;

★IM4 (ISO 12944:2018), Sea / Brackish Water with Cathodic Protection.

Operation of Compact Ball Valve:

★Lockable Handle;

★Spring Return Handle;

★Series QF Electric Actuator;

★Series QU Electric Actuator;

★Series QS Electric Actuator (Spring Return Electric Actuator);

★Series RT Double Acting Pneumatic Actuator (Aluminum Alloy Body);

★Series RT Spring Return Pneumatic Actuator (Aluminum Alloy Body);

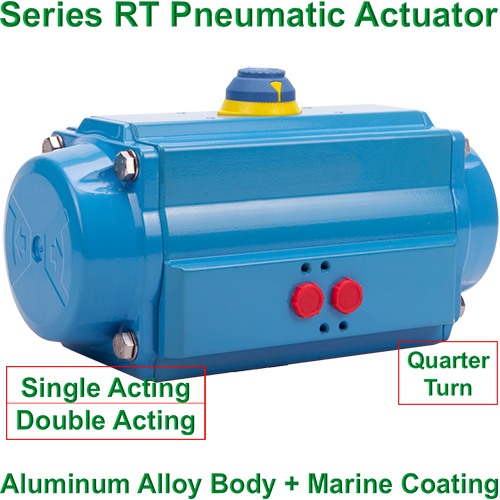

★Series RT Double Acting Pneumatic Actuator (Marine Coating);
